Claypaky

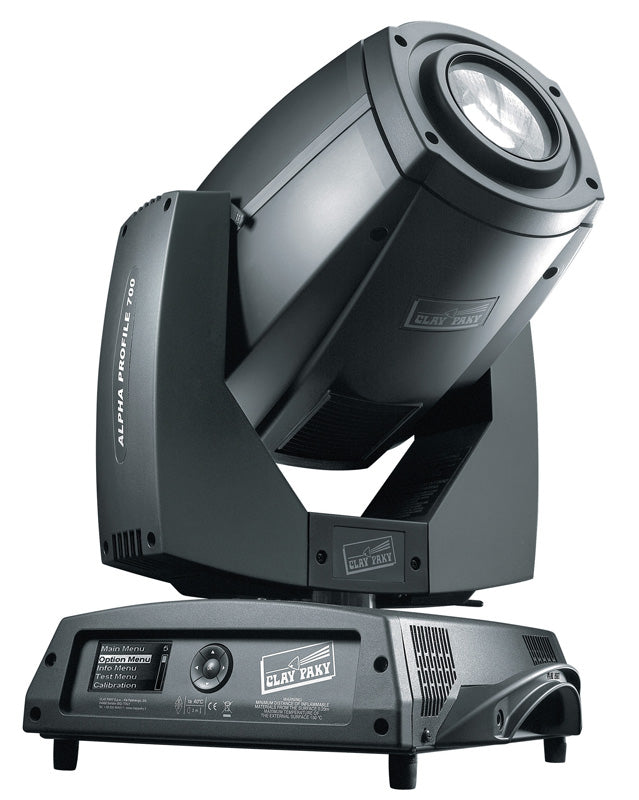

Profile 700
Moving-head profile fixture
A moving profile fixture with framing shutters that cut the beam to a shape, zooming from 11° to 55°. Used to land light on a lectern, an award table or a scenic panel and nowhere else, keeping spill off the screen behind.
Enquire About the Profile 700
We will confirm the setup and availability for your event.
What It Is
A 700 W discharge fixture on DMX or Ethernet, with 37 channels in standard mode. Pan resolves to 0.008°, so a tight state returns to the same mark every time it is called.
What It Does
- Lamp class700 W discharge lamp
- ReflectorElliptical reflector
- Colour controlsCMY, CTO and colour-wheel/macro channels
- Gobos7 rotating/indexable gobos
Best For
Specifications
- DMX channels
- 37 standard; 41 vector including timing channels
- Fine movement resolution
- Pan 0.008°; tilt 0.004°
- Zoom range
- 11–55°
- Control inputs
- DMX512 and Ethernet
- Input apparent power
- 1,050 VA at 230 V / 50 Hz
- Colour wheel
- 8 colours plus white
| Colour | |
|---|---|
| Colour controls | CMY, CTO and colour-wheel/macro channels |
| Colour wheel | 8 colours plus white |
| Control | |
| DMX channels | 37 standard; 41 vector including timing channels |
| Control inputs | DMX512 and Ethernet |
| Effects | |
| Gobos | 7 rotating/indexable gobos |
| Other effects | Iris, prism, frost, stop/strobe and macro effects |
| Electrical | |
| Supply variants | 100–120 V or 200–240 V AC, 50/60 HzCheck actual nameplate; not an unqualified 100–240 V continuous range |
| Input apparent power | 1,050 VA at 230 V / 50 Hz |
| Environment | |
| Ingress protection | IP20; no liquid ingress protection |
| Framing | |
| Shutter system | 4 blades, each with 2 control channels; framing rotation channel |
| Published module rotation | 180°Rental technical product listing |
| Identity | |
| Product codes | Alpha Profile 700 C61365; Alpha Profile 700 ST C61366 |
| Light source | |
| Lamp class | 700 W discharge lamp |
| Standard lamp reference | MSR Gold 700/2 Mini Fast Fit; PGJX28; 7,250 K; 50,000 lamp lm; 750 hLamp lumens are not fixture output |
| ST lamp reference | MSR Gold 700/1 Mini Fast Fit; PGJX28; 5,700 K; 54,000 lamp lm; 750 hST-only lamp reference; not an assumed fitted lamp |
| Additional listed lamp | Lok-it HTI 700W-60-P28; PGJX28; 6,000 K; 50,000 lamp lm; 750 h |
| Mechanical | |
| Motors | 28 microstepping motors |
| Weight | 31.5 kg |
| Mounting | |
| Orientation | Any working position |
| Movement | |
| Pan / tilt travel | 540° / 240° |
| Maximum full-travel times | Pan 4.78 s; tilt 2.33 s |
| Fine movement resolution | Pan 0.008°; tilt 0.004° |
| Optics | |
| Reflector | Elliptical reflector |
| Zoom range | 11–55°Published by rental operator Resolution X for its Alpha 700 Profile |
| Focus | Motorized focus with fine control and autofocus-distance/adjustment channels |
| Thermal | |
| Cooling | Forced ventilation using axial fans |
