Absen
INFiLED

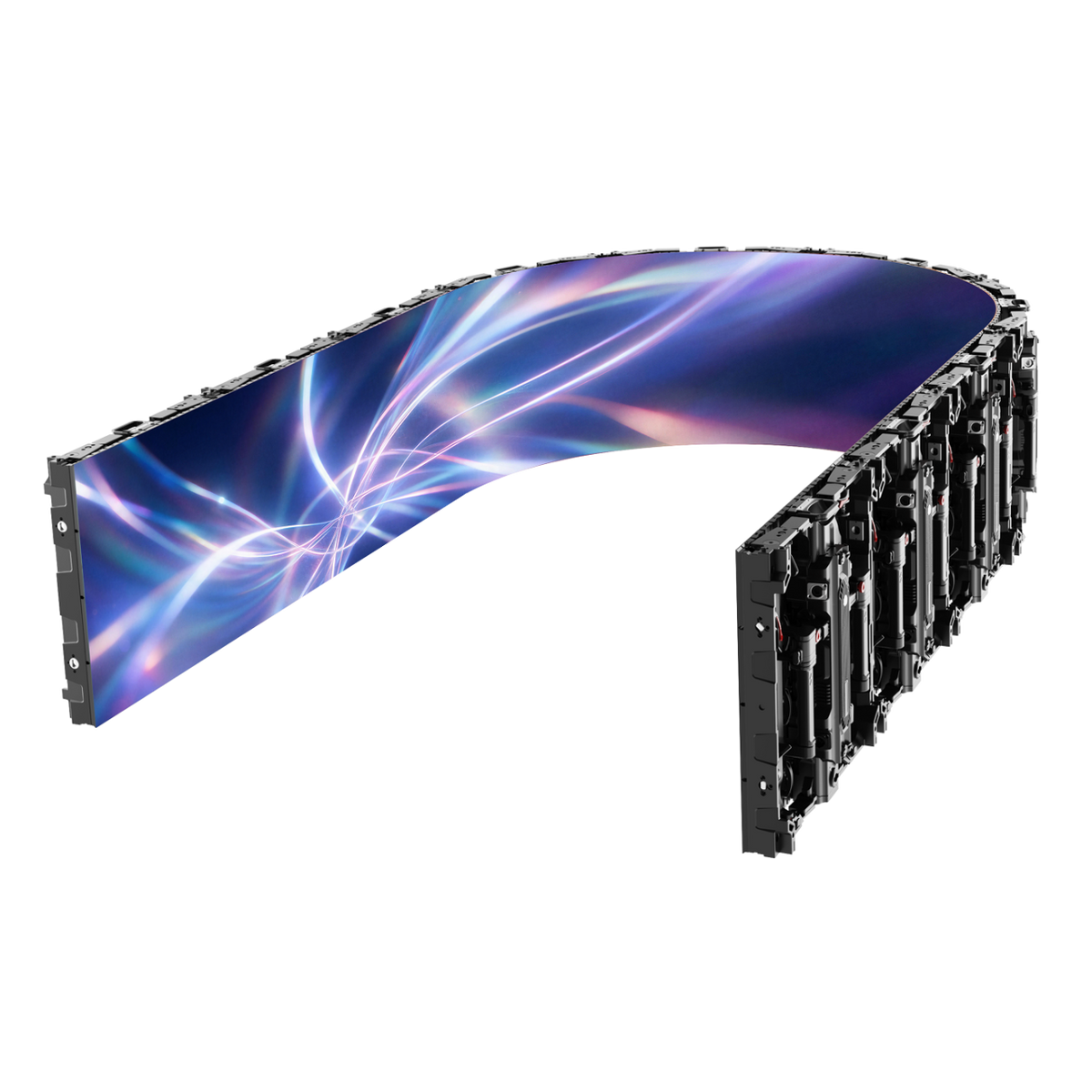

X2.5mk3 Flex LED Wall
Indoor curved LED wall panel
Give your stage a screen that follows the design. UAV’s INFiLED X2.5mk3 Flex LED panels form inward and outward curves for conference backdrops, awards nights and product launches.
Enquire About This Equipment
We will confirm the setup and availability for your event.
What It Is
A 2.5 mm pixel pitch supports detailed indoor visuals, while adjustable curvature gives the production team more freedom to shape the screen around the event. Each 500 × 500 mm cabinet contains 200 × 200 pixels. We plan the finished screen dimensions, content format and signal flow around your event.
What It Does
- Pixel pitch2.5 mm
- UseIndoor
- Curvature adjustment−45° to +45°
- Cabinet500 × 500 mm
- Refresh rate7,680 Hz
Best For
Specifications
- Brightness
- 1,000 nits
- Module dimensions
- 125 × 500 mm
- Model
- IL-RSS-IRX2.5mk3
- Use
- Indoor
- LED package
- SMD1415 black LED
- Receiving card
- NovaStar A10s Pro
| Display | |
|---|---|
| Model | IL-RSS-IRX2.5mk3 |
| Pixel pitch | 2.5 mm |
| Use | Indoor |
| LED package | SMD1415 black LED |
| Cabinet resolution | 200 × 200 pixels |
| Cabinet dimensions (W × H) | 500 × 500 mm |
| Module dimensions | 125 × 500 mm |
| Curvature adjustment | −45° to +45° |
| Brightness | 1,000 nits |
| Refresh rate | 7,680 Hz |
| Receiving card | NovaStar A10s Pro |
Documents
Use the manufacturer documents for detailed setup and operating information.
