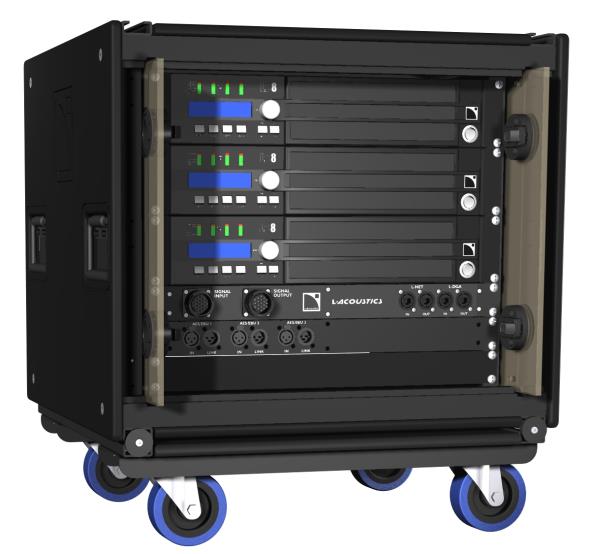

LA-RAK
Amplifier rack
Three LA8 controllers pre-built into a 9U touring cabinet with the wiring, distribution and patching already done. Used where the load-in window is tight and a system has to power up without a morning spent cabling a rack on site.
Enquire About the LA-RAK
We will confirm the setup and availability for your event.
What It Is
609 × 513 × 580 mm on castors, rolling in as a single lift. It runs from a 32 A three-phase supply, and two racks is the limit from one suitable outlet.
What It Does
- Rack chassisRK 9U touring cabinet
- Standard amplifier complement3 × LA8 amplified controllers
- Amplifier output count12 channels, from 3 × 4-channel LA8
- Per-controller rated output4 × 1800 W per LA8 at 4 Ω
Best For
Specifications
- Signal capacity
- 6 analog channels
- AES3 input capacity
- 3 AES/EBU inputs carrying 6 audio channels
- External connectors
- 19-pin PA-COM input and link output
- Front panel connections
- 3 female XLR3 inputs; 3 male XLR3 links
- Controller outlets
- 3 × Type F Schuko, one per phase
- Parallel rack connection limit
- Maximum 2 racks from one suitable 230 V supply outlet
| Analog audio | |
|---|---|
| Signal capacity | 6 analog channels |
| External connectors | 19-pin PA-COM input and link output |
| Internal amplifier feeds | 6 male XLR3 outputs |
| Digital audio | |
| AES3 input capacity | 3 AES/EBU inputs carrying 6 audio channels |
| Front panel connections | 3 female XLR3 inputs; 3 male XLR3 links |
| Distribution | |
| Standard distribution panels | LA-POWER; LA-PANEL; LA-PANEL AES3 |
| Handling | |
| Documented standard handling accessories | 1 detachable dolly board; 2 coupling bars |
| Network | |
| LA-PANEL network connectors | 2 etherCON for L-NET; 2 etherCON for L-DGAL-DGA sockets described as future applications in manual v2.0; not a claim of working Dante/AVB audio. |
| Physical | |
| Cabinet dimensions, W × H × D | 609 × 513 × 580 mm |
| Height with dolly | 663 mm |
| RK 9U and dolly weight | 51.4 kg |
| Fully equipped rack weight | 96.5 kgStandard configuration in manual v2.0. |
| Structure | Polyethylene sides; aluminium and steel frames; rubber shock mounts |
| Doors / finish | LEXAN polycarbonate doors; RAL 8019 grey-brown finish |
| Power — EU LA-POWER | |
| Nominal mains supply | 230 V ±10%, 32 A three-phase; 50–60 HzManufacturer’s European version; confirm actual Singapore rack distribution and supply design. |
| Mains input / link | 32 A P17 3P+N+G input plug and output socket |
| Controller outlets | 3 × Type F Schuko, one per phase |
| Auxiliary outlets | 1 × Type F Schuko; 2 × IEC CEE22 |
| Circuit protection | 3 × 16 A Type C controller breakers; 1 × 10 A Type C auxiliary breaker |
| Parallel rack connection limit | Maximum 2 racks from one suitable 230 V supply outletOnly under manual §6.5.1 conditions; not a generic permission to daisy-chain other mains variants. |
| Rigging | |
| Ground-stacked limit | Up to 3 LA-RAK on the dolly boardManufacturer arrangement and setup procedure only. |
| Moving / transporting limit | Up to 2 LA-RAK on the dolly boardDifferent from stationary stacking limit. |
| Flying limit | Up to 4 LA-RAK under LA-RAK BUMPRequires separately supplied frame, approved hardware, manual procedure and appropriate load design. |
| System | |
| Rack chassis | RK 9U touring cabinet |
| Standard amplifier complement | 3 × LA8 amplified controllersStock rack interiors not independently verified. |
| Amplifier output count | 12 channels, from 3 × 4-channel LA8Derived channel count for standard fully equipped rack. |
| Per-controller rated output | 4 × 1800 W per LA8 at 4 ΩDocumented LA8 configuration; see LA8 record for test conditions and alternative loads. |
