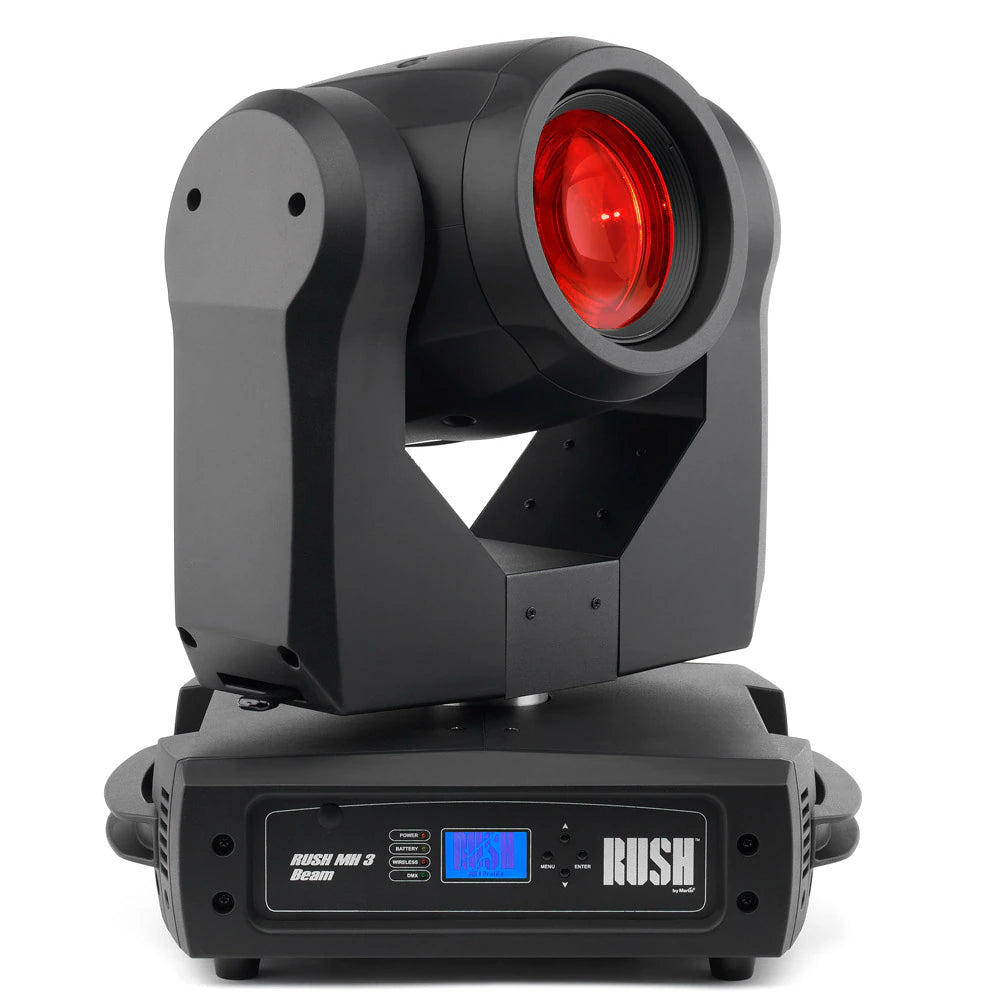

RUSH MH 3 Beam
Moving-head beam fixture
A moving beam fixture throwing a narrow visible shaft of light, zooming between 1° and 3.8°, with 14 colours and 17 gobos. Used for awards reveals, walk-ons and high-energy moments rather than for lighting faces.
Enquire About the RUSH MH 3 Beam
We will confirm the setup and availability for your event.
What It Is
418 × 321 × 489 mm and 20.5 kg, drawing around 350 W across 19 DMX channels. It reads best with a little haze in the air, which is worth agreeing with the venue early.
What It Does
- Approved lampPhilips MSD Platinum 5R
- Motorized zoom1–3.8°
- Colour wheel14 colours + open; variable rotation direction/speed
- Gobo wheel17 static gobos + open; wheel rotation and shake
Best For
Specifications
- Protocol / channels
- DMX512; 19 channels
- Nominal colour temperature
- 8,000 K
- Data connectors
- 3-pin and 5-pin locking XLR input/output
- Ambient range
- 0–40°C
- Mounting
- 2 quarter-turn clamp brackets; any orientation with appropriate fixation
- Dimensions L × W × H
- 418 × 321 × 489 mm
| Colour | |
|---|---|
| Colour wheel | 14 colours + open; variable rotation direction/speed |
| Control | |
| Protocol / channels | DMX512; 19 channels |
| Data connectors | 3-pin and 5-pin locking XLR input/output |
| Local setup | LCD control panel for addressing/settings |
| Effects | |
| Gobo wheel | 17 static gobos + open; wheel rotation and shake |
| Prism | 8 facets; indexing and variable-direction/speed rotation |
| Frost | Variable fade in/out |
| Dimmer | 0–100%; 4 dimming-curve options |
| Shutter | Strobe, pulse, instant open and blackout |
| Electrical | |
| Mains input | Neutrik powerCON; 100–240 V AC, 50/60 Hz |
| Typical total consumption | 350 W; allow ±10% variation |
| Published 230 V test point | 1.6 A, 330 W, power factor 0.917 at 230 V / 50 Hz; ±10% |
| Environment | |
| Protection / usage | IP20; indoor use |
| Ambient range | 0–40°C |
| Installation | |
| Minimum illuminated-surface distance | 12 m |
| Mounting | 2 quarter-turn clamp brackets; any orientation with appropriate fixation |
| Light source | |
| Approved lamp | Philips MSD Platinum 5R |
| Nominal colour temperature | 8,000 K |
| CRI | 75 |
| Average lamp life | 2,000 h |
| Mechanical | |
| Dimensions L × W × H | 418 × 321 × 489 mm |
| Weight | 20.5 kg |
| Movement | |
| Pan / tilt | 540° / 220° |
| Macros | 31 pan/tilt macros with adjustable speed |
| Optics | |
| Motorized zoom | 1–3.8° |
| Focus | Motorized |
| Thermal | |
| Cooling | Temperature-regulated forced air |
