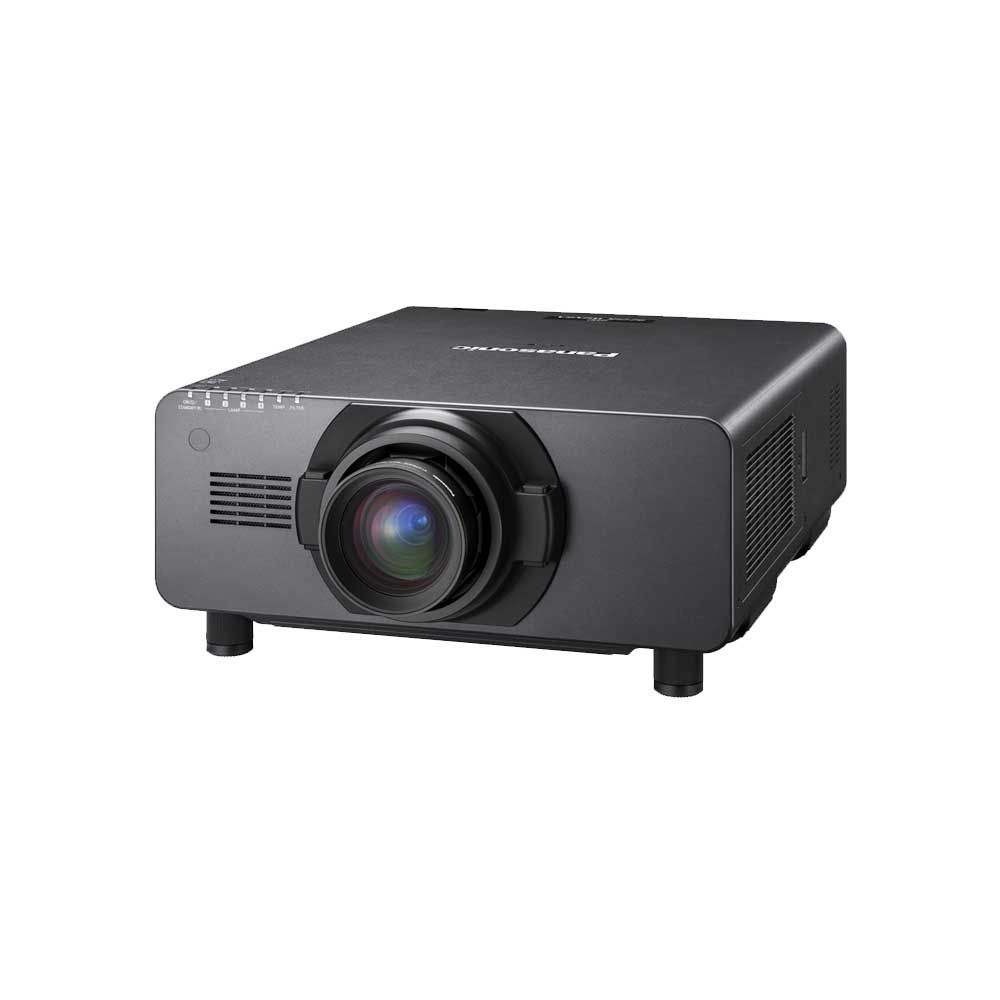

Panasonic

PT-DZ21K

Name: PT-DZ21K
Brand: Panasonic

Large-venue projector

A large-venue projector reaching images a standard unit cannot, on screens from 70 to 600 inches. Used for unusually wide screens, long throws from the back of a hall, and projection onto a building face.

Enquire About the PT-DZ21K

We will confirm the setup and availability for your event.

What It Is

Four 465 W lamps, supplied without a lens so the optic is matched to the throw and the surface. It needs dedicated power and rigging, so it is planned into the build rather than added late.

What It Does

Light output20,000 lm, four-lamp mode
Native resolution1,920 × 1,200 pixels (WUXGA)
Light source4 × 465 W UHM lamps
HDMI1 × HDMI input, HDCP compatible
Lens configurationOptional powered zoom/focus lenses; body supplied without a lens

Best For

Corporate conference
Gala or awards ceremony
Product launch
Exhibition or multi-session programme
Twin-screen or blended event design

Specifications

Display engine: 3 × 0.96 in DLP chips (R, G, B)
Native aspect ratio: 16:10
Contrast: 10,000:1 full on/full off
Screen size range: 70–600 in diagonal, 16:10; 70–300 in with ET-D75LE50
DVI: 1 × DVI-D, single-link, HDCP compatible
SDI: 2 × BNC; SDI1 accepts 3G/HD/SD and dual-link A; SDI2 accepts HD/SD and dual-link B

Control
Serial and wired remote	RS-232C in/out; wired remote in/out; parallel REMOTE2 input
Network / digital transport	RJ45 LAN 10Base-T/100Base-TX, PJLink Class 1; no DIGITAL LINK input listed
Electrical
AC input	200–240 V AC, 12 A, 50/60 Hz, 3-wire single-phase
Power consumption	2,300 W / 2,350 VA
Standby consumption	0.3 W Eco / 9 W Normal
Environment
Operating temperature	0–45 °CAltitude, temperature, lens/mode and filter restrictions can reduce allowable conditions or brightness.
Operating humidity	10–80%, non-condensing
Imaging
Display engine	3 × 0.96 in DLP chips (R, G, B)
Native resolution	1,920 × 1,200 pixels (WUXGA)
Native aspect ratio	16:10
Inputs
HDMI	1 × HDMI input, HDCP compatible
DVI	1 × DVI-D, single-link, HDCP compatible
SDI	2 × BNC; SDI1 accepts 3G/HD/SD and dual-link A; SDI2 accepts HD/SD and dual-link B
Analogue RGB	1 × five-BNC RGB1; 1 × 15-pin D-sub RGB2
Mechanical
Dimensions W×H×D	620 × 291 × 800 mm without lensHeight with feet at shortest position.
Approximate weight	43 kg without lens
Operating noise	49 dB, four-lamp operation
Optical
Light output	20,000 lm, four-lamp modeManufacturer measurement; brightness depends on lens, operating mode and service condition.
Light source	4 × 465 W UHM lamps
Contrast	10,000:1 full on/full offDynamic iris 3 for lamp models / Dynamic Contrast3 for laser models; not native contrast.
Centre-to-corner uniformity	90%
Screen size range	70–600 in diagonal, 16:10; 70–300 in with ET-D75LE50
Lens configuration	Optional powered zoom/focus lenses; body supplied without a lens
Powered optical-axis shift	Vertical ±55%; horizontal ±20%, poweredLens-dependent exceptions apply; fixed/ultra-short-throw lenses can restrict shift.
Standard keystone limits	Vertical ±40° / horizontal ±15°Lens-specific exceptions; extended correction requires ET-UK20.
