Panasonic

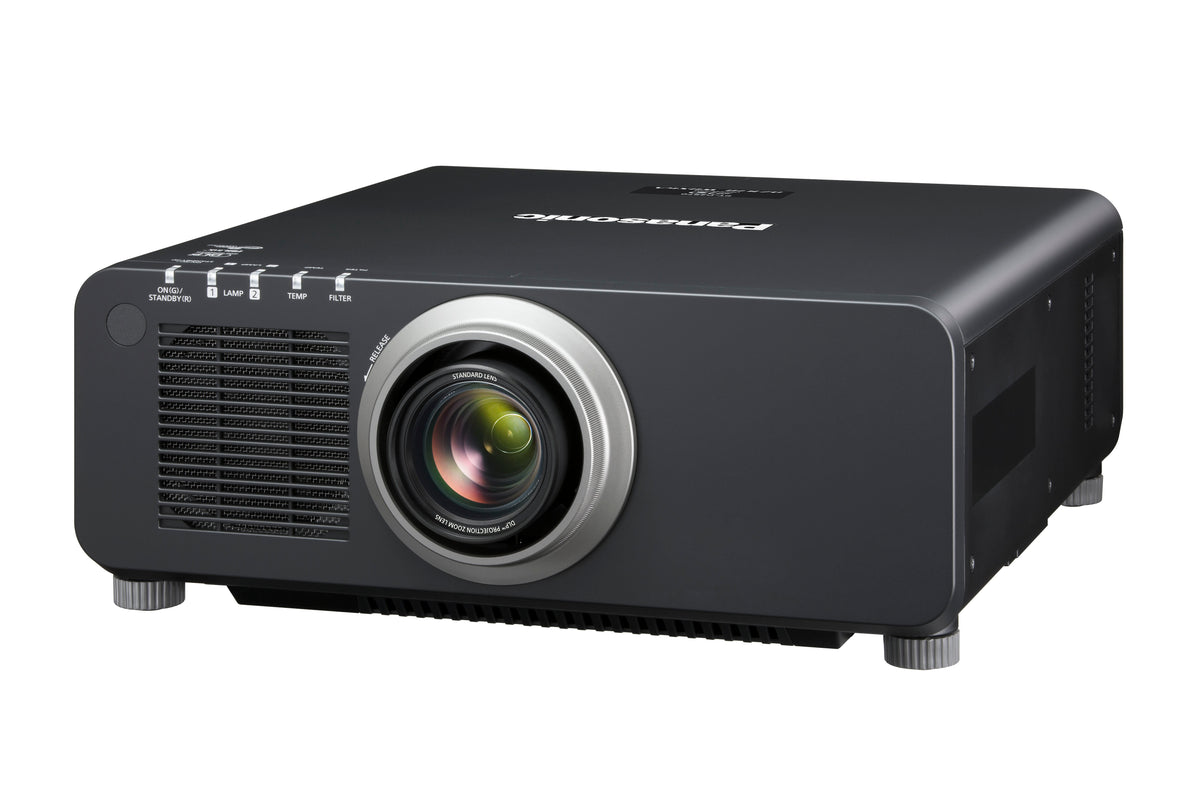

PT-DZ870

Name: PT-DZ870
Brand: Panasonic

WUXGA projector

A WUXGA projector putting a large image onto a separate screen positioned to suit the stage design. Used for ballroom and conference main screens where the picture has to be bigger than any panel and the screen has to sit where the set wants it.

Enquire About the PT-DZ870

We will confirm the setup and availability for your event.

What It Is

Twin 420 W lamps, so one failure does not take the screen out mid-session. It covers screens from 50 to 600 inches, with powered zoom, focus and shift for alignment without moving the body.

What It Does

Light output8,500 lm
Native resolution1,920 × 1,200 pixels (WUXGA)
Light source2 × 420 W UHM lamps
HDMI1 × HDMI input, HDCP compatible
Lens configurationStandard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm

Best For

Corporate conference
Gala or awards ceremony
Product launch
Exhibition or multi-session programme
Twin-screen or blended event design

Specifications

Display engine: 1 × 0.67 in DLP chip
Native aspect ratio: 16:10
Contrast: 10,000:1 full on/full off
Screen size range: 50–600 in diagonal, 16:10; 50–200 in with ET-DLE055
DVI: 1 × DVI-D, single-link, HDCP compatible
SDI: 1 × BNC, 3G/HD/SD-SDI

Control
Serial and wired remote	RS-232C in/out; wired remote in/out; parallel REMOTE2 input
Network / digital transport	1 × LAN/DIGITAL LINK RJ45; video and network control
Electrical
AC input	120–240 V AC, 50/60 Hz; 10–5.2 A
Power consumption	1,030 W / 1,060 VA
Environment
Operating temperature	0–45 °CAltitude, temperature, lens/mode and filter restrictions can reduce allowable conditions or brightness.
Operating humidity	10–80%, non-condensing
Imaging
Display engine	1 × 0.67 in DLP chip
Native resolution	1,920 × 1,200 pixels (WUXGA)
Native aspect ratio	16:10
Adjustment features	Edge blending, colour matching and geometric adjustmentSome advanced functions require optional upgrade kit.
Inputs
HDMI	1 × HDMI input, HDCP compatible
DVI	1 × DVI-D, single-link, HDCP compatible
SDI	1 × BNC, 3G/HD/SD-SDI
Analogue RGB	1 × five-BNC RGB1; 1 × 15-pin D-sub RGB2
Mechanical
Dimensions W×H×D	498 × 200 × 556 mm with lens; 498 × 200 × 513 mm without lensHeight with feet at shortest position.
Approximate weight	18.3 kg with supplied lens; 17.6 kg without lens
Operating noise	40 dB Normal / 35 dB Eco
Operation
Lamp-management functions	Dual-lamp operation and lamp-relay mode
Optical
Light output	8,500 lmManufacturer measurement; brightness depends on lens, operating mode and service condition.
Light source	2 × 420 W UHM lamps
Contrast	10,000:1 full on/full offDynamic iris 3 for lamp models / Dynamic Contrast3 for laser models; not native contrast.
Centre-to-corner uniformity	90%
Screen size range	50–600 in diagonal, 16:10; 50–200 in with ET-DLE055
Lens configuration	Standard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm; L body uses optional lens
Powered optical-axis shift	Vertical +50%; horizontal ±10%, poweredLens-dependent exceptions apply; fixed/ultra-short-throw lenses can restrict shift.
