Shure

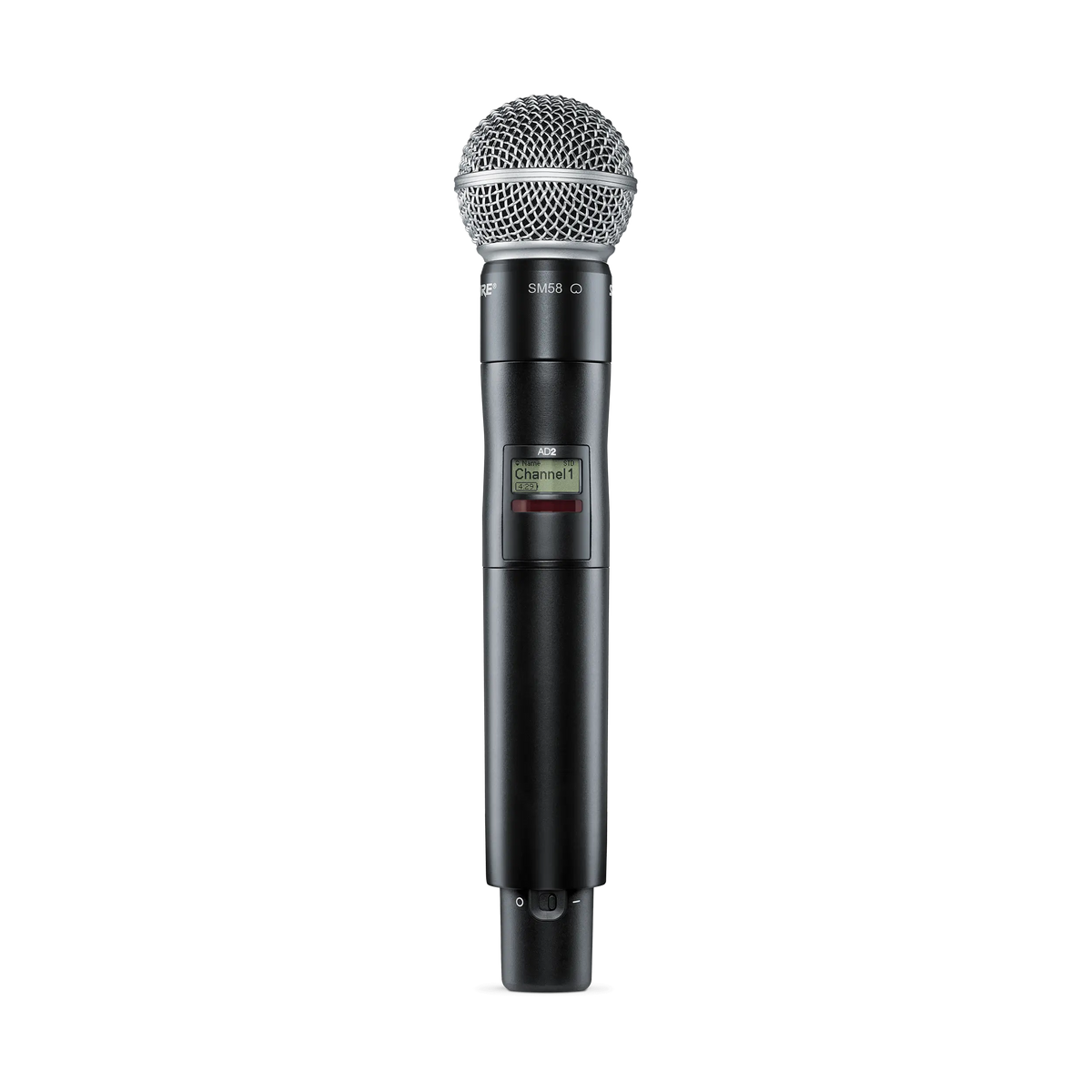

Axient AD2

Name: Axient AD2
Brand: Shure

Wireless handheld transmitter

A handheld digital transmitter with an interchangeable capsule and an encrypted link. Used for hosts, panellists and audience questions, where the microphone has to travel around a room rather than stay on a stand.

Enquire About the Axient AD2

We will confirm the setup and availability for your event.

What It Is

256 mm long and 51 mm across, so it sits comfortably in one hand. Up to eleven hours from a rechargeable pack, and the capsule is chosen for the voice and the stage rather than fixed.

What It Does

Transmitter typeHandheld for Axient Digital wireless receivers
Occupied bandwidth<200 kHz
Published rechargeable runtimeUp to 11 hours at 10 mW with SB900C
Wireless encryptionEncryption-enabled transmission

Best For

Emcee and awards presentation
Audience question and answer
Product launch interview
Live vocal performance
Backup presenter microphone

Specifications

Frequency response / pickup pattern: Determined by installed microphone cartridge
Modes / channel spacing: 350 kHz Standard; 125 kHz High Density
Mic offset range: −12 to +21 dB in 1 dB steps
Audio input configuration: Unbalanced
Maximum acoustic input reference: 145 dB SPL with SM58, typical
Battery types: Shure SB900C rechargeable lithium-ion or two LR6 AA cells

Audio
Mic offset range	−12 to +21 dB in 1 dB steps
Audio input configuration	Unbalanced
Maximum acoustic input reference	145 dB SPL with SM58, typical
Frequency response / pickup pattern	Determined by installed microphone cartridgeNo capsule response assigned without its model
Environment
Operating temperature	−18 to +50 °CBattery characteristics may limit range
Storage temperature	−29 to +74 °CBattery characteristics may limit range
Interface
Display	Backlit LCD
Switch protection	Low-profile lockable power switch
Physical
Dimensions L × diameter	256 × 51 mmManual reference dimensions; confirm assembled capsule configuration
Weight	340 g without batteryManual reference figure; assembled capsule configuration affects comparison
Housing	Cast aluminium
Power
Battery types	Shure SB900C rechargeable lithium-ion or two LR6 AA cells
Published rechargeable runtime	Up to 11 hours at 10 mW with SB900CManual specification; actual conditions and battery health matter
Published alkaline runtime	Up to 8 hours at 10 mW
Docking charging	External charging contactsRequires a compatible charger and rechargeable battery
RF
Antenna	Integrated single-band helical
Occupied bandwidth	<200 kHz
Modulation	Shure Axient Digital proprietary
Modes / channel spacing	350 kHz Standard; 125 kHz High DensityRegion-dependent
Output settings	2 / 10 / 35 mWBand/region-dependent; some variants have lower maxima
Example band ranges	G56: 470–636 MHz; K55: 606–694 MHzExamples only; stocked RF suffix unknown
Security
Wireless encryption	Encryption-enabled transmission
System
Transmitter type	Handheld for Axient Digital wireless receivers
