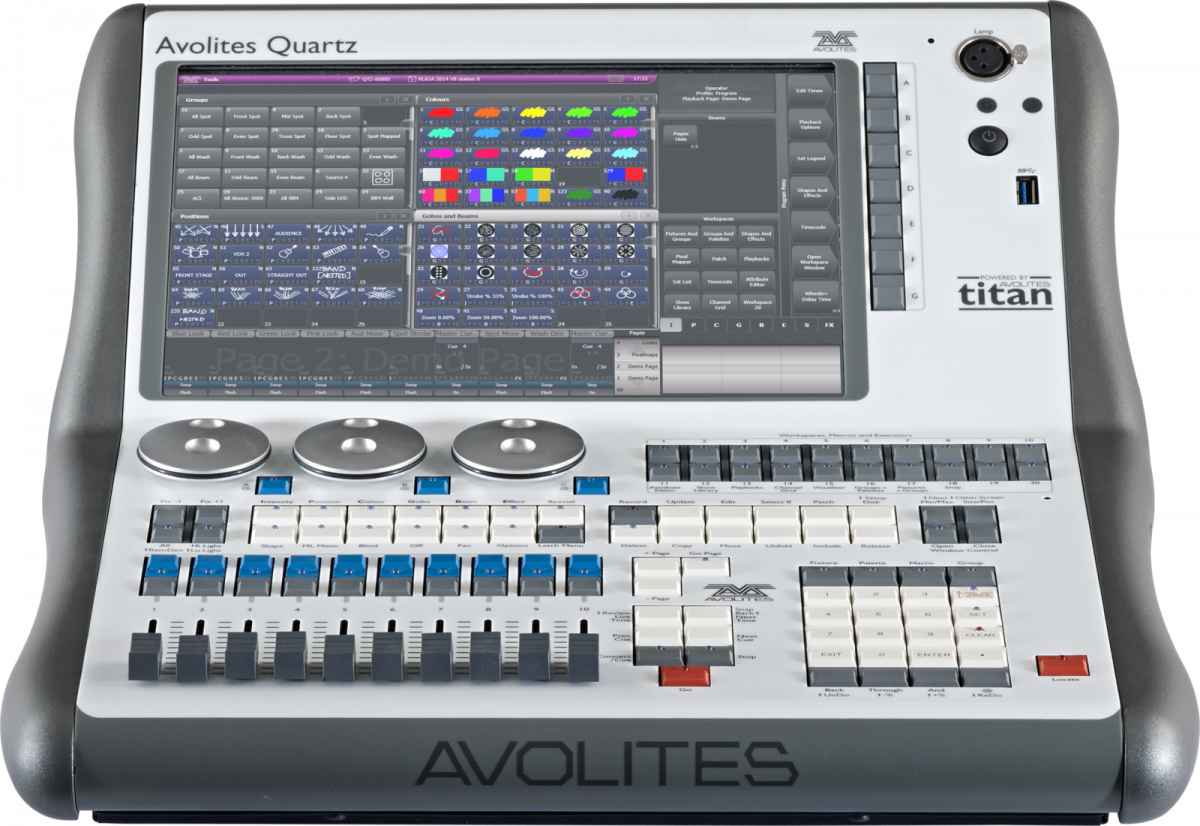

Quartz
Lighting console
A lighting console for programming states in advance and playing them back on cue, with ten playback faders and four DMX outputs. Used on conference and gala rigs where the looks are built during the day and nothing is improvised in front of an audience.
Enquire About the Quartz
We will confirm the setup and availability for your event.
What It Is
425 × 466 × 194 mm and 8 kg, drawing 80 W, so it fits a tight control position. It outputs DMX, Art-Net and sACN together, which covers most rigs without a converter.
What It Does
- Software platformAvolites Titan
- Faders10 playback faders
- Physical DMX4 × optically isolated 5-pin XLR
- Ethernet1 × gigabit etherCON
- Built-in screen12.1-inch high-brightness touchscreen
Best For
Specifications
- Console channel capacity
- 8192 DMX channels / 16 universes
- Expanded system capacity
- 32768 DMX channels / 64 universes
- MIDI input
- 5-pin DIN
- Audio output
- 3.5 mm stereo jack
- Audio trigger input
- Quarter-inch jack
- Control-surface expansion
- Optional Titan Mobile Wing
| Connections | |
|---|---|
| USB | 2 × USB 3.0, front and rearPublished spec-sheet hardware; verify actual revision |
| MIDI input | 5-pin DIN |
| Audio output | 3.5 mm stereo jack |
| Audio trigger input | Quarter-inch jackSpec table calls stereo, rear-panel drawing calls mono; wiring must be checked in hardware manual |
| Display | |
| Built-in screen | 12.1-inch high-brightness touchscreen |
| External screen | 1 × DVI-D; up to 1920 × 1200 |
| Electrical | |
| Supply | 110–240 V AC, 50–60 Hz; IEC inlet |
| Power consumption | 80 W |
| Environment | |
| Operating ambient / humidity | 0–40 °C; maximum 95% RH non-condensing |
| Expansion | |
| Control-surface expansion | Optional Titan Mobile Wing |
| Mechanical | |
| Dimensions, W × D × H | 425 × 466 × 194 mm |
| Console weight | 8 kg |
| Network | |
| Ethernet | 1 × gigabit etherCON |
| Titan Net | Multi-user and backup with Titan consolesRequires a correctly configured compatible network |
| Outputs | |
| Physical DMX | 4 × optically isolated 5-pin XLR |
| Output protocols | DMX512, Art-Net, sACN; combinations supported |
| Playback | |
| Faders | 10 playback faders |
| Macro / executor buttons | 20 |
| Processing | |
| Software platform | Avolites Titan |
| Console channel capacity | 8192 DMX channels / 16 universes |
| Expanded system capacity | 32768 DMX channels / 64 universesRequires Titan Net Processor expansion |
| Programming | |
| Encoder wheels | 3 optical encoders |
| Storage | |
| Internal storage | Solid state |
| Thermal | |
| Heat output | 272.8 BTU/hour |
