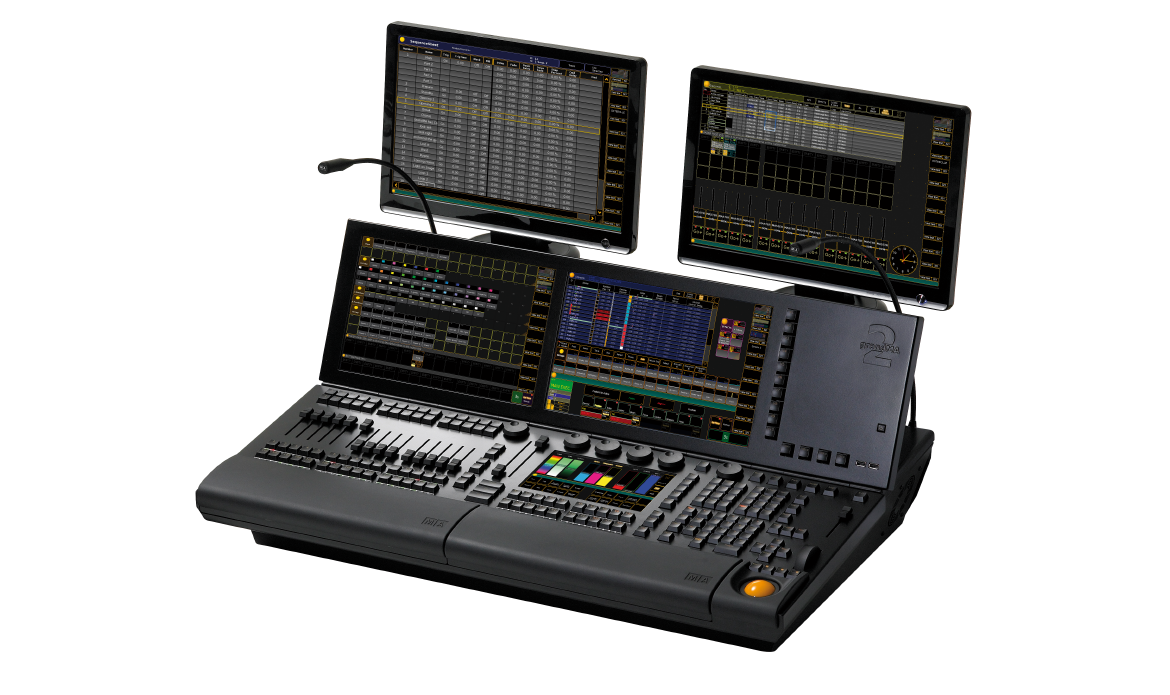

grandMA2 light
Lighting console
A show console running 4,096 parameters with six DMX outputs and fifteen motorised executor faders. Used where lighting carries part of the performance and every state has to fire against a rehearsed running order.
Enquire About the grandMA2 light
We will confirm the setup and availability for your event.
What It Is
935 × 652 × 204 mm drawing 350 VA, with a built-in UPS so a brief power interruption does not drop the show. It is the standard desk on large rigs, so most freelance operators already know it.
What It Does
- Standalone parameters4096 HTP/LTP parameters
- Executor faders15 motorised
- DMX outputs6 × 5-pin XLR
- Ethernet connectors2 × etherCON
- Main internal displays2 × 15.4-inch WXGA touchscreens
Best For
Specifications
- Fader-wing link
- 1 × MA Link
- A/B faders
- 2 motorised, 100 mm
- DMX input
- 1 × 5-pin XLR
- SMPTE input
- 1 × 3-pin XLR
- Dimensions, W × D × H
- 935 × 652 × 204 mm
- Net weight
- 37 kg
| Connections | |
|---|---|
| USB | 5 × USB 2.0 |
| Fader-wing link | 1 × MA Link |
| MIDI | DIN input and output |
| Desk lights | 2 × 4-pin XLR |
| Display | |
| Main internal displays | 2 × 15.4-inch WXGA touchscreens |
| Command screen | 1 × 9-inch SVGA multitouch screen |
| External displays | 2 × DVI, UXGA; compatible touchscreens supportedExternal monitors optional |
| Electrical | |
| Supply | 120/230 V, 50/60 Hz, automatic detection |
| Rated consumption | 350 VA |
| Mains inlet | powerCON |
| Inputs | |
| DMX input | 1 × 5-pin XLR |
| Sound trigger | 1 × 3-pin XLR |
| SMPTE input | 1 × 3-pin XLR |
| Analogue remote | 25-pin D-sub |
| Mechanical | |
| Dimensions, W × D × H | 935 × 652 × 204 mmManual labels dimensions in this order; web page lists 935 × 204 × 652 mm |
| Net weight | 37 kg |
| Network | |
| Ethernet connectors | 2 × etherCON |
| Outputs | |
| DMX outputs | 6 × 5-pin XLR |
| Playback | |
| Executor faders | 15 motorised |
| A/B faders | 2 motorised, 100 mm |
| Power | |
| Internal continuity supply | Built-in UPS |
| Processing | |
| Standalone parameters | 4096 HTP/LTP parametersParameters are not identical to raw DMX channel count |
| Expanded session ceiling | 65536 parameters, up to 256 DMX universesRequires MA NPU processing; not standalone capacity |
| Programming | |
| Keyboard | Integrated drawer keyboard |
