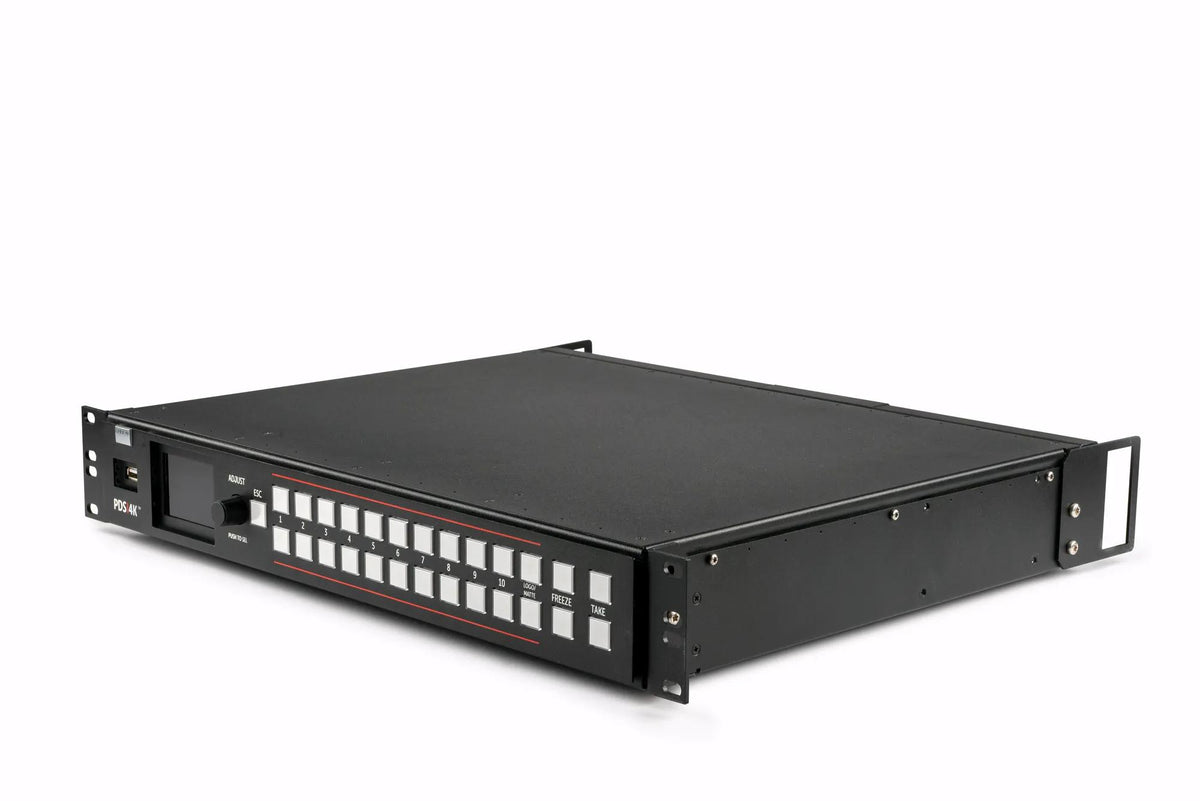

PDS-4K
4K presentation switcher
A seamless switcher holding higher-resolution sources at full quality through the cut, with six HDMI 2.0 inputs and four outputs. Used where slides carry small type or detailed drawings that would soften on a large screen and lose the room.
Enquire About the PDS-4K
We will confirm the setup and availability for your event.
What It Is
66 × 484 × 409 mm and 6.21 kg, drawing 151 W. Eight 4K stills sit in memory, so holding slides and logos play without a laptop on standby.
What It Does
- HDMI inputs6 × HDMI 2.0
- Program at 60 Hz2 × UHD/4K60 program outputs
- HDMI outputs4 × HDMI 2.0
- SDI-version extra inputs2 × 12G-SDI, in addition to 6 × HDMI 2.0
Best For
Specifications
- Software interfaces
- Event Master PC/Mac, Event Master controllers and WebUI
- Latency
- ≤2 frames at 60 Hz
- Dimensions H × W × D
- 66.2 × 484.1 × 409 mm
- Weight
- 6.21 kg
- HDCP
- HDCP 1.x and 2.2
- Local operation
- Mappable front-panel buttons
| Acoustic | |
|---|---|
| Published noise | 37 dB at ambient 23°C |
| Content protection | |
| HDCP | HDCP 1.x and 2.2 |
| Control | |
| Local operation | Mappable front-panel buttons |
| Software interfaces | Event Master PC/Mac, Event Master controllers and WebUI |
| Ethernet | RJ45, 10/100/1000 Mb/s autosensing |
| Electrical | |
| Supply / listed power | 100–240 V AC, 50/60 Hz; 151 W |
| Environment | |
| Operating temperature | 0–40°C |
| Operating humidity | 0–85% RH, non-condensing |
| Expansion | |
| Option slot | Additional connector types and/or Dante audio processing via optional card |
| Mechanical | |
| Dimensions H × W × D | 66.2 × 484.1 × 409 mm |
| Weight | 6.21 kg |
| Monitoring | |
| Multiviewer | 1 × UHD60; configurable layouts with inputs, preview and program |
| Processing | |
| Program at 60 Hz | 2 × UHD/4K60 program outputs |
| Four-program operation | 4 × UHD/4K30 or FHD60 program outputs |
| PIP allocation | Per output: 1 mixing PIP or 2 non-mixing PIPs on a still background |
| Mixers | 1 mixer per program output |
| Keys | Luma and chroma key on non-mixing PIPs |
| Still stores | 8 still images, each up to 4K |
| Latency | ≤2 frames at 60 Hz |
| Video I/O | |
| HDMI inputs | 6 × HDMI 2.0 |
| HDMI outputs | 4 × HDMI 2.0 |
| SDI-version extra inputs | 2 × 12G-SDI, in addition to 6 × HDMI 2.0 |
