MX40 Pro
LED display controller
An LED display controller for combining presentations, cameras and playback on one screen. It supports up to nine million pixels, subject to the display configuration.
Enquire About the MX40 Pro
We will confirm the setup and availability for your event.
What It Is

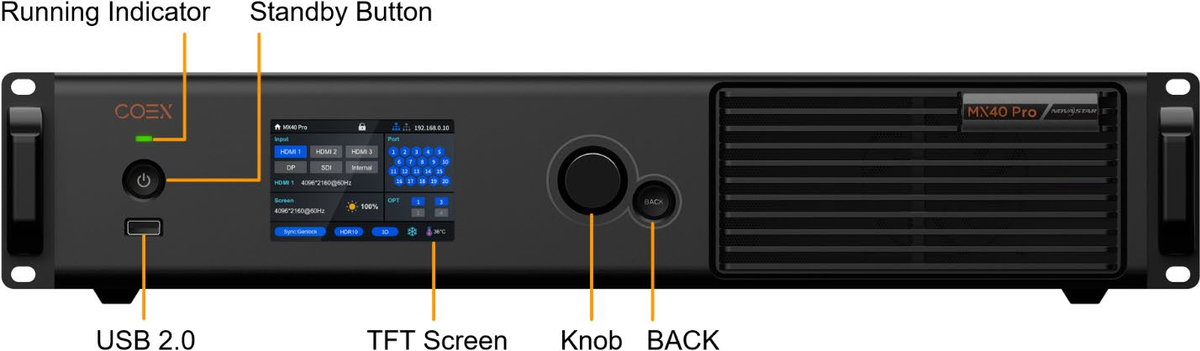

A 2U controller with a maximum power consumption of 95 W. Up to four 4K layers can be arranged across the LED display, within the processing and output limits.
What It Does
- LED capacityUp to nine million pixels, subject to configuration
- Layered layoutsUp to four 4K layers, within the overall processing limits
- Video inputsHDMI 2.0, DisplayPort 1.2 and 12G-SDI
Best For
Specifications
- LED loading capacity
- Up to 9 million pixels
- Layers
- Up to 4 independent 4K layers with Z-order adjustment
- Layer scaling
- Custom, pixel-to-pixel, snap-to-canvas, fill-screen
- Software and protocols
- VMP; TCP/IP, SNMP, Art-Net and central-control protocol
- Control connectors
- 2 × Gigabit Ethernet; AUX RS-232
- HDMI
- 3 × HDMI 2.0 inputs, each with loop output
| Colour | |
|---|---|
| HDR support | HDR10 / HLGAutomatic parsing on HDMI; DP/SDI or non-standard sources require manual override. |
| 3D LUT grids | 17³ / 33³ / 65³ .cube files |
| Control | |
| Software and protocols | VMP; TCP/IP, SNMP, Art-Net and central-control protocol |
| Control connectors | 2 × Gigabit Ethernet; AUX RS-232 |
| Electrical | |
| Power input / maximum consumption | 100–240 V AC, 50/60 Hz / 95 W |
| Environment | |
| Operating temperature / humidity | −20 to +45 °C / 0–80% RH, non-condensing |
| Storage temperature / humidity | −30 to +80 °C / 0–95% RH, non-condensing |
| Ingress protection | IP20 |
| Inputs | |
| HDMI | 3 × HDMI 2.0 inputs, each with loop output |
| DisplayPort | 1 × DP 1.2 input |
| SDI | 1 × 12G-SDI input with loop output |
| HDMI maximum format | 4,096 × 2,160 at 60 Hz / 8,192 × 1,080 at 60 Hz (forced)Bit depth and chroma restrictions depend on the input format. |
| Input bit depths | 8 / 10 / 12 bitSupported combinations depend on input format and frame rate. |
| Mechanical | |

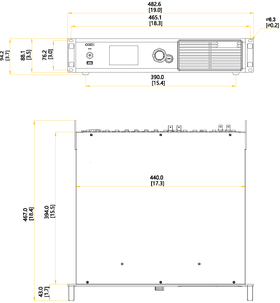

| Dimensions W×H×D | 482.6 × 94.2 × 467.0 mm, foot pad included |
| Net weight | 7.5 kg |
| Outputs | |
| LED Ethernet | 20 × Gigabit Ethernet ports |
| Optical | 4 × 10G; 20-port or 40-port optical modeOptical/Ethernet outputs can be synchronous; modes do not remove overall capacity constraints. |
| Audio | 1 × SPDIF; audio selected from HDMI 2.0-2 or 2.0-3 |
| Processing | |
| LED loading capacity | Up to 9 million pixelsPort limits vary with frame rate, bit depth and receiving card. |
| Layers | Up to 4 independent 4K layers with Z-order adjustment |
| Layer scaling | Custom, pixel-to-pixel, snap-to-canvas, fill-screen |
| Presets | 128 customizable presets |
| Timing | |
| Genlock input/loop | Bi-level, tri-level and blackburst; 23.98–60 Hz |
| Minimum processor latency | Less than 1 ms / 0-frame modeCannot combine low latency with Genlock, 3D or Frame Multiplication. |
| Additional latency | 0–2 added frames |
