Kara
Line-array loudspeaker
A modular line-array loudspeaker used as part of a larger sound system. Multiple cabinets are arranged to suit the audience layout.
Enquire About the Kara
We will confirm the setup and availability for your event.

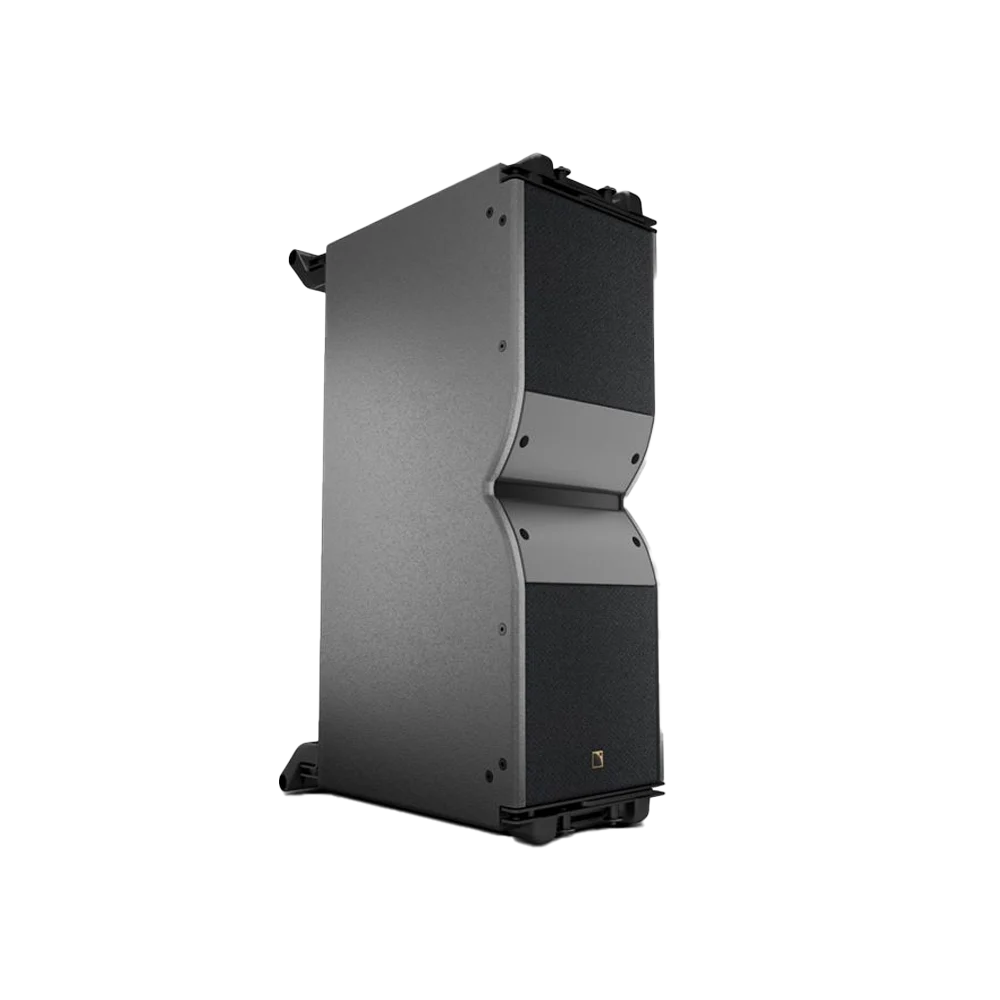

Images show an individual cabinet and an example array. Cabinet quantity and rigging are confirmed for your event.
What It Is
A two-way loudspeaker cabinet for flown or ground-stacked arrays. It works with compatible amplified controllers and rigging; cabinet quantity depends on the coverage required.
What It Does
- Array formatMultiple cabinets work together to cover the audience
- System setupUses compatible amplified controllers and rigging
- Coverage designCabinet quantity and angles are planned for the venue
Best For
Specifications
- Usable bandwidth
- 55 Hz–20 kHz
- Maximum SPL
- 141 dB
- Horizontal coverage
- 110° symmetric
- Vertical coverage
- Determined by array length and curvature
- Loading
- LF bass reflex; HF DOSC waveguide
- Speaker input/link
- 1 × 4-pole speakON input; 1 × 4-pole speakON link
| Acoustic | |
|---|---|
| Usable bandwidth | 55 Hz–20 kHz−10 dB; [KARA] preset |
| Maximum SPL | 141 dBPeak at 1 m, free field, pink noise crest factor 4; [KARA] preset |
| Horizontal coverage | 110° symmetricNominal −6 dB |
| Vertical coverage | Determined by array length and curvature |
| Loading | LF bass reflex; HF DOSC waveguide |
| Connections | |
| Speaker input/link | 1 × 4-pole speakON input; 1 × 4-pole speakON link |
| Drivers | |
| LF | 2 × 8-inch neodymium cone drivers |
| HF | 1 × 3-inch diaphragm neodymium compression driver |
| Electrical | |
| Nominal impedance | LF 8 Ω; HF 8 Ω |
| Physical | |
| Dimensions (W × H × D) | 730 × 250 × 482 mmMain enclosure dimensions; excludes protruding hardware. |
| Net weight | 26 kg |
| Cabinet | Baltic birch plywood |
| Front | Coated steel grille with acoustically neutral 3D fabric |
| Rigging hardware | Captive system; corrosion-protected steel |
| Ingress rating | IP55 |
| Rigging | |
| Inter-enclosure angles | 0°, 1°, 2°, 3°, 4°, 5°, 7.5°, 10° |
| System | |
| Design | Two-way modular WST line-array enclosure; bi-amplified |
| Supported amplified controllers | LA4X / LA8 / LA12X |
Documents
Use the manufacturer documents for detailed setup and operating information.
