Syva

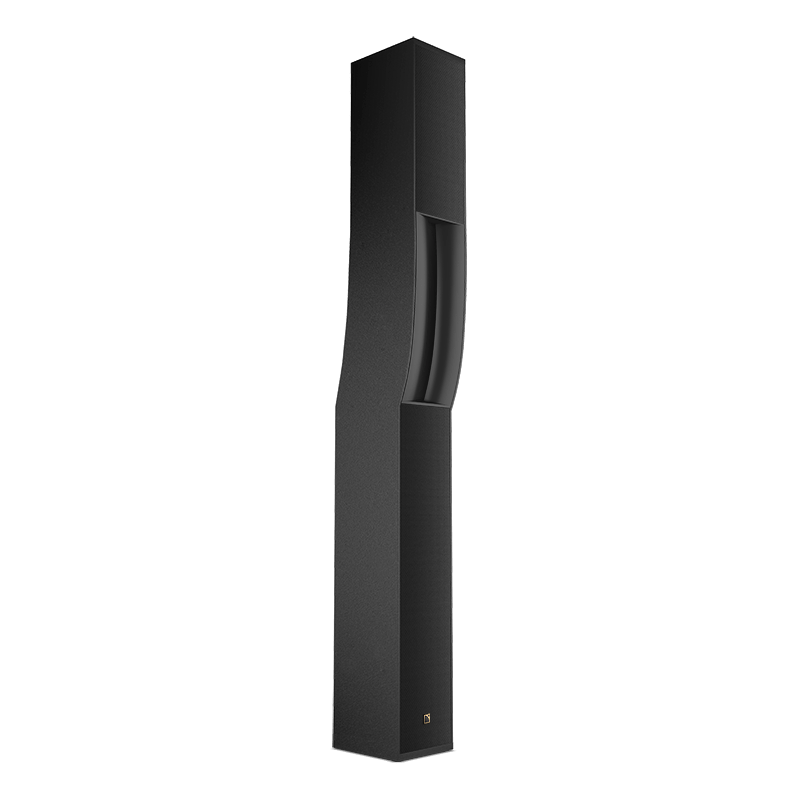

Column loudspeaker system
A colinear column covering 140° horizontally from an enclosure 144 mm wide and 1,301 mm tall. Used for conferences, receptions and dinners where the sound has to carry but a speaker stack would sit in every sightline and every photograph.
Enquire About the Syva
We will confirm the setup and availability for your event.
What It Is
144 mm wide and 1,301 mm tall at 21 kg, rated IP54, so it stands against a wall or drape and handles a covered outdoor position. Its own bass enclosure works below 87 Hz where the programme needs it.
What It Does
- Amplifier supportLA2Xi / LA4X / LA8 / LA12X
- DesignPassive two-way colinear enclosure
- Usable bandwidth87 Hz–20 kHz
- Maximum SPL137 dB
Best For
Specifications
- Horizontal coverage
- 140°
- Vertical coverage
- +5° / −21°
- Drivers
- 6 × 5-inch MF; 3 × 1.75-inch HF diaphragm drivers
- Drivers
- 2 × 12-inch cone drivers
- Driver
- 1 × 12-inch cone driver
- Connections
- 4-pole speakON and AutoConnect
| Both bass references | |
|---|---|
| Dimensions (W × H × D) | 334 × 849 × 350 mm |
| Connections | 4-pole speakON and AutoConnect |
| Ingress rating | IP55 |
| System | |
| Amplifier support | LA2Xi / LA4X / LA8 / LA12XLA2Xi maximum SPL differs; see its drive capability |
| Syva column | |
| Design | Passive two-way colinear enclosure |
| Usable bandwidth | 87 Hz–20 kHz−10 dB; [SYVA] preset |
| Maximum SPL | 137 dBPeak at 1 m free field; crest-factor-4 pink noise; [SYVA]; amplifier-dependent |
| Horizontal coverage | 140°Nominal; above 1 kHz per system sheet |
| Vertical coverage | +5° / −21°J-shaped coverage; above 1 kHz |
| Drivers | 6 × 5-inch MF; 3 × 1.75-inch HF diaphragm drivers |
| Impedance | 8 Ω |
| Connections | 4-pole speakON, screw terminal and AutoConnect |
| Dimensions (W × H × D) | 144 × 1301 × 209 mm |
| Net weight | 21 kg |
| Ingress rating | IP54 |
| Syva Low only | |
| Drivers | 2 × 12-inch cone drivers |
| Low-frequency limit | 40 Hz−10 dB; [SYVA LOW_100] |
| Maximum SPL | 137 dBPeak at 1 m half-space, crest factor 4; [SYVA LOW_100] |
| Impedance | 4 Ω |
| Net weight | 29 kg |
| Syva Sub only | |
| Driver | 1 × 12-inch cone driver |
| Low-frequency limits | 27 Hz / 29 Hz[SYVA SUB_100] / [SYVA SUB_200], respectively; −10 dB |
| Maximum SPL | 128 dB / 130 dB[SYVA SUB_100] / [SYVA SUB_200]; peak half-space test |
| Impedance | 8 Ω |
| Net weight | 27 kg |
Documents
Use the manufacturer documents for detailed setup and operating information.
