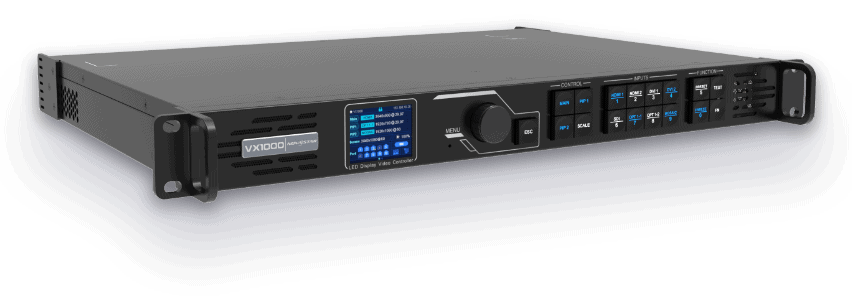

VX1000
LED display controller
An LED display controller that both drives the wall and switches its sources, carrying up to 6.5 million pixels and 10,240 pixels of width. Used where a screen needs a controller and a switcher but the rack has space for only one box.
Enquire About the VX1000
We will confirm the setup and availability for your event.
What It Is
483 × 351 × 50 mm and 4 kg, drawing 28 W. Three layers can be sized and stacked, so a logo or a lower third sits over live content without a separate device.
What It Does
- HDMI inputs2 × HDMI 1.4; one with loop output
- Total loading capacityUp to 6.5 million pixels
- Output width / height limits10,240 pixels maximum width; 8,192 maximum height
- DVI inputs2 × DVI; one with loop output
Best For
Specifications
- Digital input resolution
- Up to 3,840 × 1,080 at 60 Hz or 3,840 × 2,160 at 30 Hz
- Video layers
- 3; adjustable size, position and priority
- Wired interfaces
- Ethernet control plus USB 2.0 Type-B input and Type-A cascading output
- SDI input
- 1 × 3G/HD/SD-SDI BNC with loop; up to 1,920 × 1,080 at 60 Hz
- Presets
- 10 user-defined
- Backup arrangements
- Device, Ethernet-port and input-source backup
| Audio | |
|---|---|
| Audio routing | Embedded HDMI input; output via compatible multifunction card on Ethernet port 1 or 2 |
| Control | |
| Software | NovaLCT and V-Can |
| Wired interfaces | Ethernet control plus USB 2.0 Type-B input and Type-A cascading output |
| Electrical | |
| Supply | 100–240 V AC, 1.6 A, 50/60 Hz |
| Rated consumption | 28 W |
| Environment | |
| Operating temperature / humidity | 0–45 °C / 20–90% RH, non-condensing |
| Storage temperature / humidity | −20 to +70 °C / 10–95% RH, non-condensing |
| Inputs | |
| HDMI inputs | 2 × HDMI 1.4; one with loop output |
| DVI inputs | 2 × DVI; one with loop output |
| Digital input resolution | Up to 3,840 × 1,080 at 60 Hz or 3,840 × 2,160 at 30 HzHDMI/DVI connector specifications; no 4K60 HDMI input. |
| SDI input | 1 × 3G/HD/SD-SDI BNC with loop; up to 1,920 × 1,080 at 60 Hz |
| Mechanical | |
| Dimensions | 483.6 × 351.2 × 50.1 mm |
| Net weight | 4 kg |
| Typical noise | 45 dB(A) at 25 °C |
| Optical | |
| Optical ports | 2 × 10G; OPT1 adaptive input/output, OPT2 output copy/backup |
| Outputs | |
| LED data Ethernet | 10 × Gigabit Ethernet |
| Video monitor | 1 × HDMI 1.3, monitoring or video-output mode |
| Processing | |
| Total loading capacity | Up to 6.5 million pixels |
| Output width / height limits | 10,240 pixels maximum width; 8,192 maximum heightIndependent limits; total pixel capacity still applies, not a 10,240×8,192 raster. |
| Video layers | 3; adjustable size, position and priority |
| Presets | 10 user-defined |
| Working modes | Video Controller / Fiber Converter / Bypass |
| Backup arrangements | Device, Ethernet-port and input-source backup |
| Timing | |
| Genlock | Input and loop; bi-level and tri-level sync |
| Lowest stated latency | 20 lines from input to receiving cardRequires both low-latency function and Bypass mode. |
