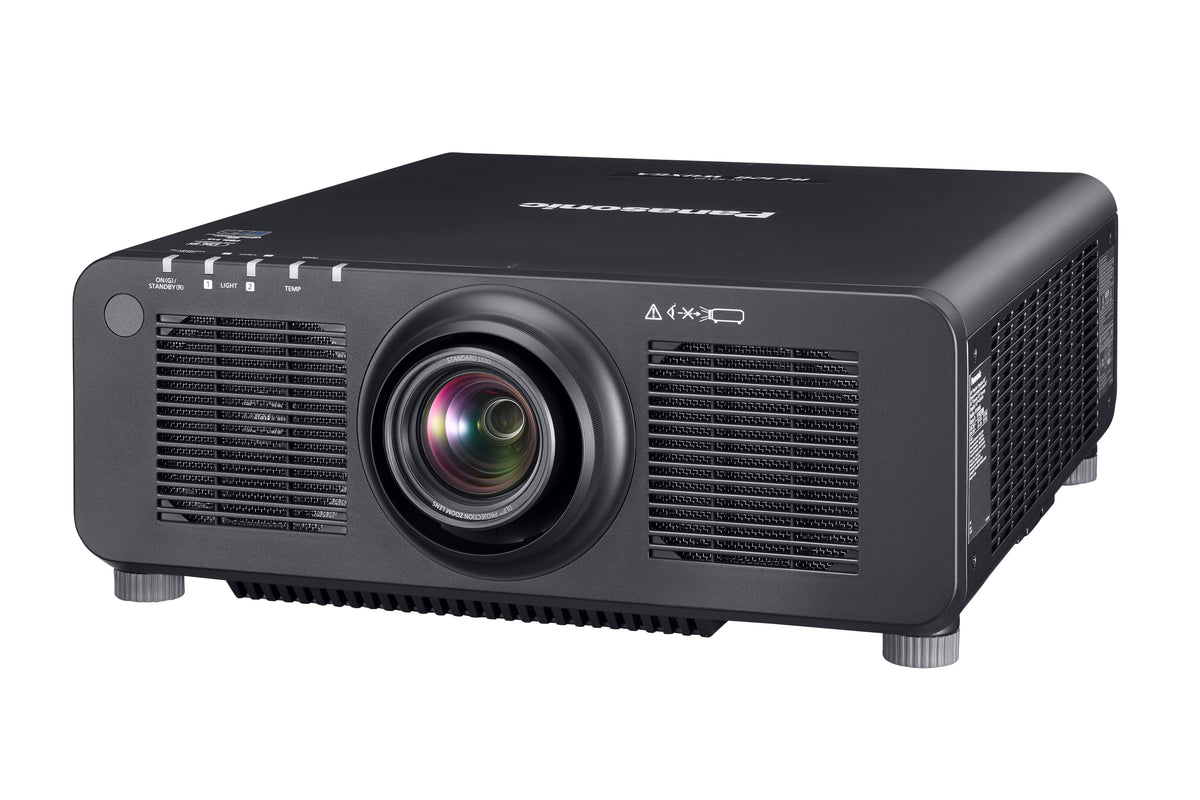

Panasonic

PT-RZ120

Name: PT-RZ120
Brand: Panasonic

Laser projector

A laser projector for presentations, video and event graphics. Its native WUXGA resolution and 12,000-lumen output support large-screen projection with the appropriate lens and screen.

Enquire About the PT-RZ120

We will confirm the setup and availability for your event.

What It Is

A single-chip DLP laser projector. The lens, projection distance, screen size and room lighting are considered together when planning the image.

What It Does

Light output12,000 lumens
Native resolutionWUXGA, 1920 × 1200 pixels
Laser light sourceDesigned for professional event projection
Lens choiceSelected to suit the screen and projection distance

Best For

Conferences
Presentations
Awards and galas

Specifications

Display engine: 1 × 0.67 in DLP chip
Native aspect ratio: 16:10
Contrast: 10,000:1 full on/full off
Screen size range: 50–600 in diagonal, 16:10; 50–200 in with ET-DLE055; 100–350 in with ET-DLE035
Lens configuration: Standard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm; L body uses optional lens
HDMI: 1 × HDMI input, HDCP compatible; HDCP 2.2, supported 4K/60p input

Control
Serial and wired remote	RS-232C in/out; wired remote in/out; parallel REMOTE2 input
Network / digital transport	1 × DIGITAL LINK/LAN RJ45 plus 1 × LAN RJ45; PJLink Class 2 and Art-Net
Electrical
AC input	100–240 V AC, 50/60 Hz; 11–4.5 A
Power consumption	1,100 W maximum; 730 W Normal / 590 W Eco in specified testLaser Normal/Eco values measured with IEC62087:2008 content, 25 °C, 700 m altitude, Standard picture/Dynamic Contrast2.
Environment
Operating temperature	0–45 °CAltitude, temperature, lens/mode and filter restrictions can reduce allowable conditions or brightness.
Operating humidity	10–80%, non-condensing
Imaging
Display engine	1 × 0.67 in DLP chip
Native resolution	1,920 × 1,200 pixels (WUXGA)
Native aspect ratio	16:10
Inputs
HDMI	1 × HDMI input, HDCP compatible; HDCP 2.2, supported 4K/60p input
DVI	1 × DVI-D, single-link, HDCP compatible
SDI	1 × BNC, 3G/HD/SD-SDI
Analogue RGB	1 × five-BNC RGB1; 1 × 15-pin D-sub RGB2
Light source
Time to 50% light output	20,000 h Normal; 24,000 h Eco
Mechanical
Dimensions W×H×D	498 × 200 × 581 mm with lens; 498 × 200 × 538 mm without lensHeight with feet at shortest position.
Approximate weight	23.6 kg with supplied lens; 22.8 kg without lens
Operating noise	44 dB Normal / 41 dB Quiet1 / 38 dB Quiet2
Optical
Light output	12,000 lm ANSI; 12,600 lm centreManufacturer measurement; brightness depends on lens, operating mode and service condition.
Light source	Laser diode
Contrast	10,000:1 full on/full offWith Dynamic Contrast 3; not native contrast.
Centre-to-corner uniformity	90%
Screen size range	50–600 in diagonal, 16:10; 50–200 in with ET-DLE055; 100–350 in with ET-DLE035
Lens configuration	Standard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm; L body uses optional lens
Powered optical-axis shift	Vertical +50% / −16%; horizontal +30% / −10%, poweredLens-dependent exceptions apply; fixed/ultra-short-throw lenses can restrict shift.
Eco light output	9,600 lm
