Panasonic

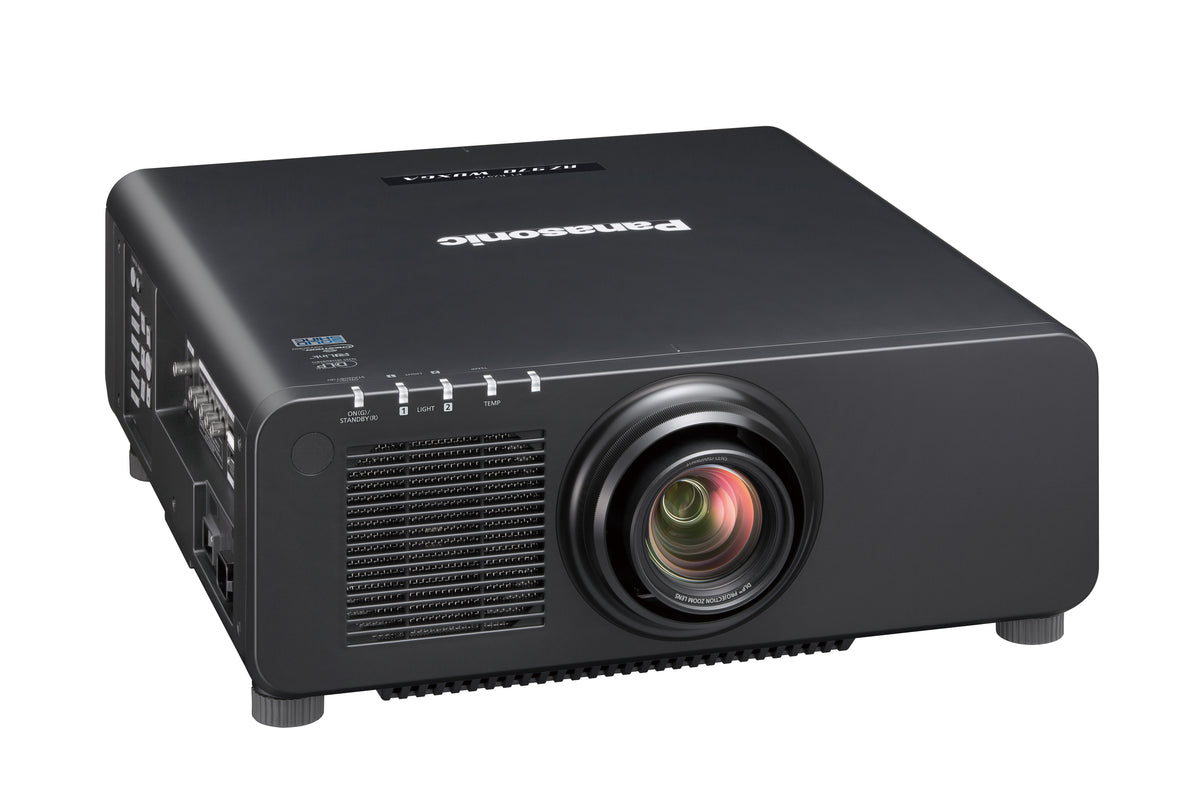

PT-RZ970

Name: PT-RZ970
Brand: Panasonic

Laser projector

A laser projector holding steady output across a full programme day, with no lamp to replace or fail. Used as a conference main screen, where a blown lamp mid-keynote would stop the room and there is no time to swap a projector.

Enquire About the PT-RZ970

We will confirm the setup and availability for your event.

What It Is

Powered zoom, focus and optical shift align the image from wherever the projector can physically sit. Vertical shift reaches +50%, so it hangs above sightlines rather than sitting in the audience.

What It Does

Light output9,400 lm; 10,000 lm centre
Native resolution1,920 × 1,200 pixels (WUXGA)
Light sourceLaser diode
HDMI1 × HDMI input, HDCP compatible
Lens configurationStandard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm

Best For

Corporate conference
Gala or awards ceremony
Product launch
Exhibition or multi-session programme
Twin-screen or blended event design

Specifications

Display engine: 1 × 0.67 in DLP chip
Native aspect ratio: 16:10
Contrast: 10,000:1 full on/full off
Screen size range: 50–600 in diagonal, 16:10; lens-specific exceptions apply
DVI: 1 × DVI-D, single-link, HDCP compatible
SDI: 1 × BNC, 3G/HD/SD-SDI

Control
Serial and wired remote	RS-232C in/out; wired remote in/out; parallel REMOTE2 input
Network / digital transport	1 × LAN/DIGITAL LINK RJ45; video and network control
Electrical
AC input	100–240 V AC, 50/60 Hz; 10.4–5.0 A
Power consumption	1,050 W maximum; 742 W Normal / 617 W Eco in specified testLaser Normal/Eco values measured with IEC62087:2008 content, 25 °C, 700 m altitude, Standard picture/Dynamic Contrast2.
Environment
Operating temperature	0–45 °CAltitude, temperature, lens/mode and filter restrictions can reduce allowable conditions or brightness.
Operating humidity	10–80%, non-condensing
Imaging
Display engine	1 × 0.67 in DLP chip
Native resolution	1,920 × 1,200 pixels (WUXGA)
Native aspect ratio	16:10
Inputs
HDMI	1 × HDMI input, HDCP compatible
DVI	1 × DVI-D, single-link, HDCP compatible
SDI	1 × BNC, 3G/HD/SD-SDI
Analogue RGB	1 × five-BNC RGB1; 1 × 15-pin D-sub RGB2
Light source
Time to 50% light output	20,000 h Normal; 24,000 h Eco
Mechanical
Dimensions W×H×D	498 × 200 × 581 mm with lens; 498 × 200 × 538 mm without lensHeight with feet at shortest position.
Approximate weight	23.2 kg with supplied lens; 22.4 kg without lens
Operating noise	41 dB Normal / 37 dB Quiet1 / 35 dB Quiet2
Optical
Light output	9,400 lm; 10,000 lm centreManufacturer measurement; brightness depends on lens, operating mode and service condition.
Light source	Laser diode
Contrast	10,000:1 full on/full offWith Dynamic Contrast 3; not native contrast.
Centre-to-corner uniformity	90%
Screen size range	50–600 in diagonal, 16:10; lens-specific exceptions apply
Lens configuration	Standard powered zoom/focus 1.7–2.4:1, F1.7–1.9, f25.6–35.7 mm; L body uses optional lens
Powered optical-axis shift	Vertical +50% / −16%; horizontal +30% / −10%, poweredLens-dependent exceptions apply; fixed/ultra-short-throw lenses can restrict shift.
Eco light output	7,500 lm
