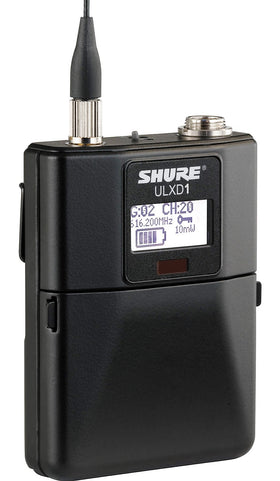

ULXD1
Wireless bodypack transmitter
A bodypack transmitter sending a presenter's audio to the receiver with AES-256 encryption on the link. Used for headset and lapel microphones on stage, where nothing should run across the floor and nothing should be intercepted.
Enquire About the ULXD1
We will confirm the setup and availability for your event.
What It Is
Over eleven hours from a rechargeable pack, or nine from AA cells, at 10 mW. Output switches between 1, 10 and 20 mW to suit the room and the channel count.
What It Does
- Transmitter typeULX-D digital bodypack
- Occupied bandwidth<200 kHz
- Published SB900C runtimeMore than 11 hours at 10 mW
- Wireless encryptionAES-256
Best For
Specifications
- Frequency response
- 20 Hz–20 kHz, ±1 dB
- Input connector
- 4-pin male mini connector, TA4M
- Input configuration
- Unbalanced
- Input impedance
- 1 MΩ
- Mic offset range
- 0 to +21 dB in 3 dB steps
- Maximum input, pad off
- +8.5 dBV, 7.5 V peak-to-peak
| Audio | |
|---|---|
| Input connector | 4-pin male mini connector, TA4M |
| Input configuration | Unbalanced |
| Input impedance | 1 MΩ |
| Frequency response | 20 Hz–20 kHz, ±1 dBTransmitter/system electrical specification; microphone response is separate |
| Mic offset range | 0 to +21 dB in 3 dB steps |
| Maximum input, pad off | +8.5 dBV, 7.5 V peak-to-peak1 kHz at 1% THD |
| Maximum input, pad on | +20.5 dBV, 30 V peak-to-peak1 kHz at 1% THD |
| Equivalent input noise | −120 dBV, A-weighted, typicalSystem gain ≥+20 |
| Environment | |
| Operating temperature | −18 to +50 °CSystem battery characteristics may limit range |
| Interface | |
| Display / locks | Backlit LCD; frequency and power lockout |
| Physical | |
| Dimensions H × W × D | 86 × 66 × 23 mm |
| Weight | 142 g without batteries |
| Housing | Cast aluminium |
| Power | |
| Battery types | Shure SB900-series rechargeable lithium-ion or two LR6 AA cells |
| Published SB900C runtime | More than 11 hours at 10 mWGuide general specification; detailed band/runtime chart varies by battery and RF band |
| Published alkaline runtime | 9 hours at 10 mW in general specificationGuide’s detailed table gives band-dependent values; use tested condition for event scheduling |
| Docking charging | External contacts; compatible SBC200/SBC220 docking chargers |
| RF | |
| RF connector / impedance | SMA / 50 Ω |
| Antenna | Detachable quarter-wave |
| Occupied bandwidth | <200 kHz |
| Modulation | Shure proprietary digital |
| Power settings | 1 / 10 / 20 mWBand and region dependent |
| Example RF bands | G50: 470–534 MHz; H50: 534–598 MHz |
| Security | |
| Wireless encryption | AES-256 |
| System | |
| Transmitter type | ULX-D digital bodypack |
Documents
Use the manufacturer documents for detailed setup and operating information.
