L-Acoustics

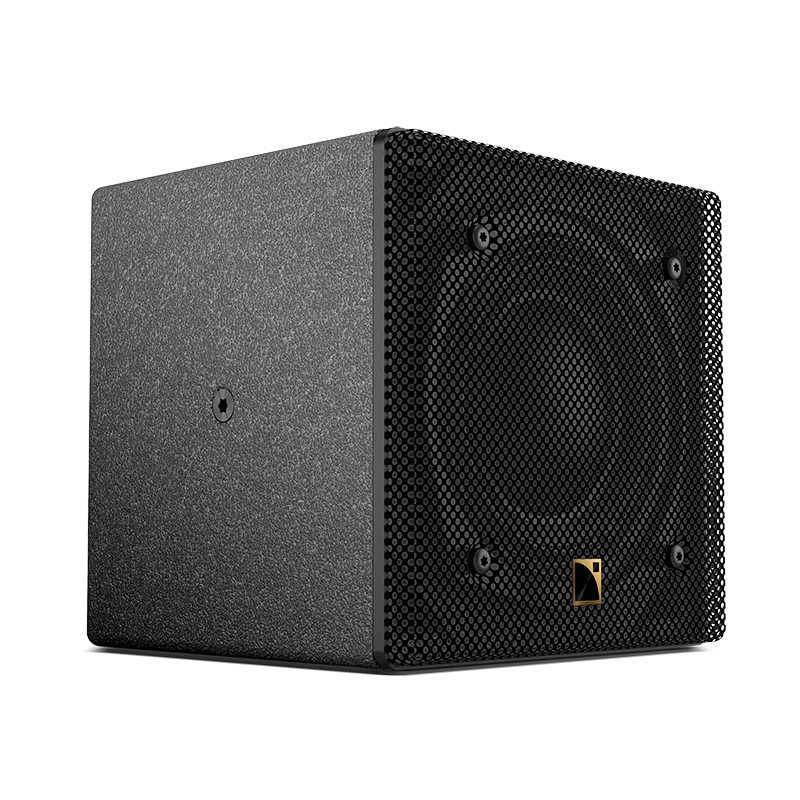

5XT

Name: 5XT
Brand: L-Acoustics

Ultra-compact loudspeaker

An ultra-compact coaxial speaker covering 110° from a cube small enough to disappear into a set. Used for front fill along a stage edge, corridor coverage and sound at demonstration tables, where a full cabinet would sit in the sightlines.

Enquire About the 5XT

We will confirm the setup and availability for your event.

What It Is

165 mm on every side and 3.5 kg, with a microphone-stand thread underneath for quick positioning. The cone is weather-resistant, so foyer and covered outdoor placements are fair game.

What It Does

DesignPassive two-way coaxial enclosure
Usable bandwidth95 Hz–20 kHz
Maximum SPL121 dB
Coverage110° axisymmetric at −6 dB
LF1 × 5-inch weather-resistant cone

Best For

Conference front rows
Exhibition displays
Reception and registration areas
Gala room ambience
Small presentation corners

Specifications

Loading: Bass reflex
Nominal impedance: 16 Ω
Compatible amplification: LA2Xi / LA4X / LA12X
Speaker sockets: 4-pole speakON input and link
Dimensions (W × H × D): 165 × 165 × 165 mm
Net weight: 3.5 kg

Acoustic
Usable bandwidth	95 Hz–20 kHz−10 dB; [5XT] preset
Maximum SPL	121 dBPeak at 1 m, free field, crest-factor-4 pink noise; [5XT] preset
Coverage	110° axisymmetric at −6 dB
Loading	Bass reflex
Connections
Speaker sockets	4-pole speakON input and link
Installation terminals	2 × 2-point screw terminals
Drivers
LF	1 × 5-inch weather-resistant cone
HF	1 × 1-inch compression driver
Electrical
Nominal impedance	16 Ω
Physical
Dimensions (W × H × D)	165 × 165 × 165 mm
Net weight	3.5 kg
Cabinet	Baltic birch plywood
Front	Steel grille with anti-corrosion coating
Standard ingress rating	IP30
Conditional ingress rating	IP54
Rigging
Mounting	3/8-inch microphone-stand insert; 2 × M6 inserts for ETR5
System
Design	Passive two-way coaxial enclosure
Compatible amplification	LA2Xi / LA4X / LA12XListed on product sheet v5.0; use current controller/preset documentation
