L-Acoustics

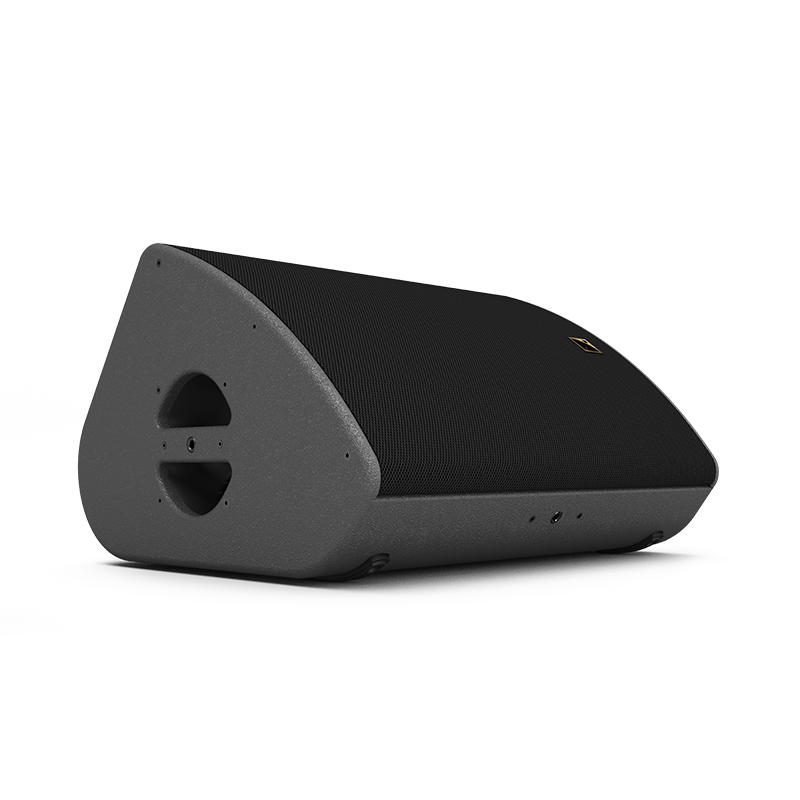

X15 HiQ

Name: X15 HiQ
Brand: L-Acoustics

Coaxial stage monitor

A stage monitor that gives performers and presenters a separate audio mix. It helps them hear the voices, instruments and playback they need on stage.

Enquire About the X15 HiQ

We will confirm the setup and availability for your event.

What It Is

A coaxial stage monitor that uses an external amplified controller. The monitor mix is set separately from the main audience mix.

What It Does

Stage monitoringProvides a separate mix for the person on stage
Coaxial designLow- and high-frequency drivers share one acoustic axis
System setupUses a compatible L-Acoustics amplified controller

Best For

Live performances
Presentations
Rehearsals

Specifications

Usable bandwidth: 55 Hz–20 kHz
Maximum SPL: 138 dB
Nominal directivity: 40° horizontal × 60° vertical
Loading: Bass reflex with L-Vents; ellipsoid HF waveguide
Speaker connectors: 4-pole speakON input and link
Impedance: LF 8 Ω; HF 8 Ω

Acoustic
Usable bandwidth	55 Hz–20 kHz−10 dB; [X15] preset
Maximum SPL	138 dBPeak at 1 m free field; crest-factor-4 pink noise; [X15] preset
Nominal directivity	40° horizontal × 60° verticalManufacturer specification orientation; rotation changes orientation in the venue
Monitor angles	35° without risers; 55° with risersWith respect to vertical
Loading	Bass reflex with L-Vents; ellipsoid HF waveguide
Connections
Speaker connectors	4-pole speakON input and link
Drivers
LF	1 × 15-inch neodymium cone driver
HF	1 × 3-inch neodymium diaphragm compression driver
Electrical
Impedance	LF 8 Ω; HF 8 Ω
Handling
Handles	2
Physical
Dimensions (W × H × D)	430 × 580 × 375 mm
Net weight	21 kg
Cabinet	Baltic birch and beech plywood
Ingress rating	IP43
Rigging
Pole sockets	2 × 35 mm
Inserts	4 × M10; DIN580-compatible M8 insert
System
Design	Active two-way coaxial; external bi-amplification
Amplification support	LA4X / LA8 / LA12XChoose the relevant preset and published drive limits
