L-Acoustics

X8

Name: X8
Brand: L-Acoustics

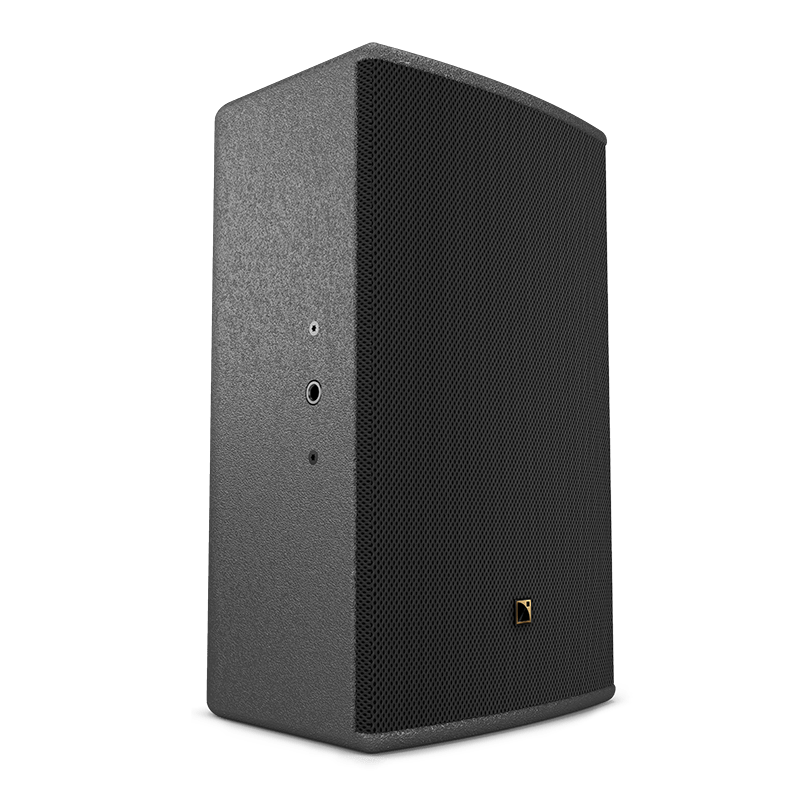

Compact coaxial loudspeaker

A passive two-way coaxial speaker covering 100° evenly in every plane from a single point. Used as the main system in breakout rooms and on small stages, or as fill covering seats the main array cannot reach.

Enquire About the X8

We will confirm the setup and availability for your event.

What It Is

250 × 424 × 264 mm and 12 kg, so one person flies or stands it without a lift. It runs from 60 Hz, which covers speech and background music without adding a subwoofer.

What It Does

DesignPassive two-way coaxial enclosure
Usable bandwidth60 Hz–20 kHz
Maximum SPL129 dB
Coverage100° axisymmetric
LF1 × 8-inch cone driver

Best For

Breakout rooms
Conference front fills
Exhibition demonstration areas
Control position monitoring
Gala room support

Specifications

Loading: Bass reflex with L-Vents
Speaker input/link: 4-pole speakON input and link
Nominal impedance: 8 Ω
Amplification support: LA2Xi / LA4X / LA8 / LA12X
Dimensions (W × H × D): 250 × 424 × 264 mm
Net weight: 12 kg

Acoustic
Usable bandwidth	60 Hz–20 kHz−10 dB; [X8] preset
Maximum SPL	129 dBPeak at 1 m free field; 12 dB crest-factor pink noise; [X8] preset
Coverage	100° axisymmetric
Loading	Bass reflex with L-Vents
Monitor angle	35° from vertical
Connections
Speaker input/link	4-pole speakON input and link
Drivers
LF	1 × 8-inch cone driver
HF	1 × 1.5-inch neodymium diaphragm compression driver
Electrical
Nominal impedance	8 Ω
Handling
Handle	1
Physical
Dimensions (W × H × D)	250 × 424 × 264 mmPDF dimension drawing; the current web page incorrectly prints depth as 164 mm
Net weight	12 kg
Cabinet	Baltic birch and beech plywood
Ingress rating	IP43
Rigging
Pole socket	35 mm
Inserts	4 × M10 and DIN580-compatible M8
System
Design	Passive two-way coaxial enclosure
Amplification support	LA2Xi / LA4X / LA8 / LA12XController capability and presets determine the valid channel loading
