Panasonic

PT-RZ34K

Name: PT-RZ34K
Brand: Panasonic

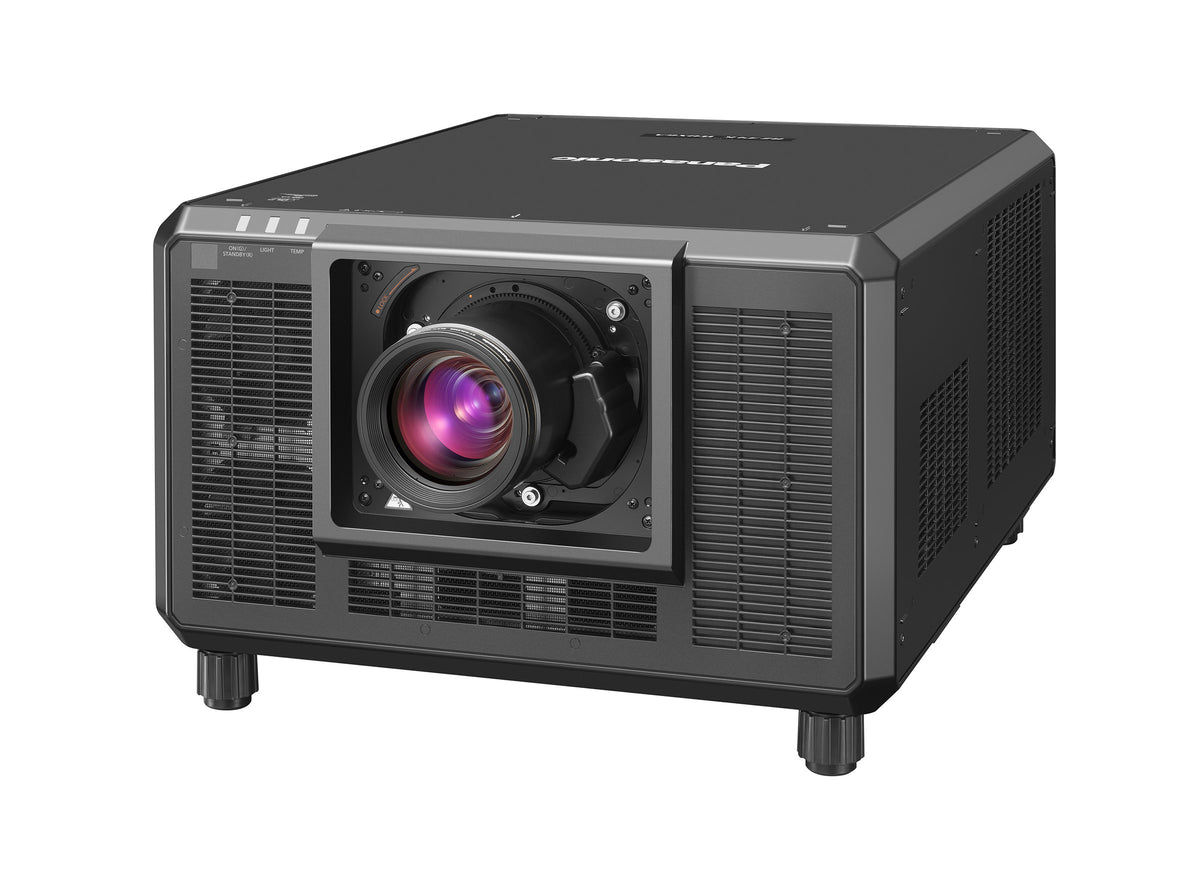

Three-chip DLP laser projector

A 30,500-lumen laser projector for large screens and projection onto scenery. Its native WUXGA image suits ballrooms, exhibition halls and main stages.

Enquire About the PT-RZ34K

We will confirm the setup and availability for your event.

What It Is

A high-output three-chip DLP laser projector for large-scale projection in demanding event environments. The lens is interchangeable and matched to the throw distance and screen size.

What It Does

Light output30,500 lumens in Normal mode, for large screens in big rooms
Native resolutionWUXGA, 1,920 × 1,200 pixels, for sharp text and video
ColourThree-chip DLP with red and blue lasers, covering about 90% of DCI-P3
Throw ratio0.364:1 to 13.8:1 across Panasonic's interchangeable lenses, for short and long throws
InstallationCeiling or floor, front or rear, at any angle through 360°

Best For

Large conferences
Corporate presentations
Product launches
Gala and ballroom events
Exhibitions
Scenic and large-format projection

Specifications

Display engine: 3 × 0.96 in DLP chips
Light source: Laser diodes (blue and red)
Contrast: 20,000:1 full on/full off, with Dynamic Contrast 3
Screen size range: 70–1,000 in diagonal, depending on lens
Lens configuration: Interchangeable; Panasonic sells the body without a lens
Lens shift: Powered; vertical ±55%, horizontal ±20%

Control
Network	1 × LAN RJ-45, 10/100, PJLink Class 2, Art-Net
Serial and wired remote	RS-232C in/out; wired remote in/out; REMOTE 2 contact control input
Multi-projector tools	Edge blending, geometry correction, and contrast and shutter sync across linked projectorsSync uses the MULTI PROJECTOR SYNC IN/OUT BNC terminals, daisy-chained in a loop of up to 64 projectors.
Electrical
AC input	200–240 V AC, single phase, 50/60 HzFull light output needs 200–240 V; on 100–120 V it falls to about one third.
Power outlet	Dedicated, grounded 30 A outlet at 200–240 V
Power consumption	2,450 W maximum at 200–240 V
Environment
Operating temperature	0–45 °C0–40 °C at 1,400–4,200 m altitude, or with the optional AJ-WM50 wireless module attached. Below 2,700 m, light output may be reduced at 35 °C or above; at 2,700–4,200 m, at 25 °C or above.
Operating humidity	10–80%, non-condensing
Imaging
Display engine	3 × 0.96 in DLP chips
Native resolution	1,920 × 1,200 pixels (WUXGA, 16:10)
4K input	Up to 4096 × 2160/60p, displayed at 1,920 × 1,200On HDMI and DIGITAL LINK. Over DIGITAL LINK, 4K/50p and 4K/60p are accepted in YPbPr 4:2:0 only.
Inputs
HDMI	1 × HDMI input, HDCP 2.2 compatible
DVI	1 × DVI-D, single link, HDCP compatible
SDI	1 × BNC, 3G/HD-SDI6G- and 12G-SDI need an optional interface board: the ET-MDN12G10 (BNC) or the ET-MDNFB10 (optical).
DIGITAL LINK	1 × RJ-45, HDBaseT compliant, HDCP 2.2 compatibleUp to 100 m for signals up to 1,920 × 1,200; 50 m above that.
Expansion slot	1 × SLOT NX for an optional interface boardPanasonic's optional boards add HDMI, DVI-D, DisplayPort, 12G-SDI or 12G-SDI optical inputs.
Backup input	Switches to a second input automatically if the primary signal is lostBuilt-in pairs are SDI with HDMI and SDI with DVI-D. Both inputs must carry the same signal.
Mechanical
Dimensions W×H×D	598 × 353 × 780 mmExcluding protrusions; 402 mm high including the feet at their shortest setting.
Approximate weight	68.6 kgAverage value. Panasonic specifies two or more people to carry it.
Operating noise	49 dB Normal / 49 dB Eco / 46 dB Quiet
Optical
Light output	30,500 lm; 32,000 lm centreNormal mode, measured to ISO/IEC 21118:2020 at AC 200 V with any lens except the ET-D75LE95. Both are averages of new units at shipment; output declines with running hours.
Eco and Quiet light output	24,000 lm Eco; 20,000 lm QuietMeasured under the same conditions as Normal mode.
Light source	Laser diodes (blue and red)
Time to 50% light output	20,000 h Normal; 24,000 h Eco; 26,000 h QuietPanasonic's estimate at 35 °C and 700 m altitude; the actual time varies with the environment. It is not the remaining life of a particular unit.
Contrast	20,000:1 full on/full off, with Dynamic Contrast 3Measured to ISO/IEC 21118:2020 with the dynamic contrast function active.
Centre-to-corner zone ratio	90%
Screen size range	70–1,000 in diagonal, depending on lens70–600 in with the ET-D75LE8 and ET-D3LET80; 120–600 in with the ET-D75LE95; 200–600 in with the ET-D3LEW201/200 and ET-D3LEU101/100. This is the optical range; brightness at the largest sizes depends on the screen and room light.
Lens configuration	Interchangeable; Panasonic sells the body without a lensThe lens is confirmed during enquiry.
Throw ratio range	0.364:1 to 13.8:1 across Panasonic's optional lensesRated at a 150 in image.
Lens shift	Powered; vertical ±55%, horizontal ±20%Standard range; varies by lens. Not supported with the ET-D3LEW50.
Installation	Ceiling or floor, front or rear, free 360° installation
