CL5

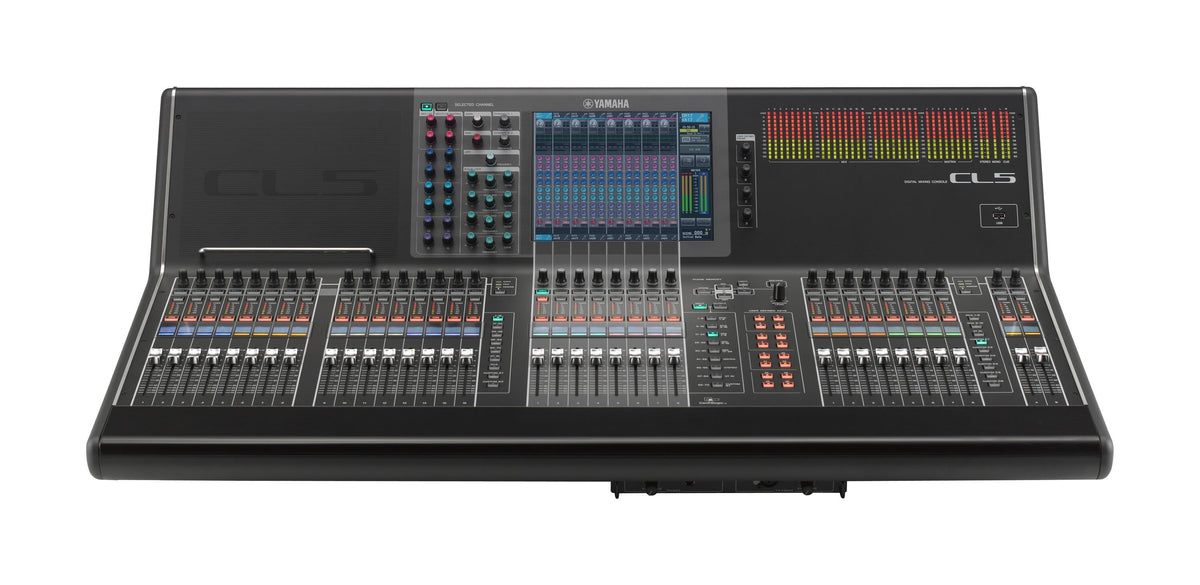

Digital mixing console
A digital mixing console for combining microphones, instruments and playback. It gives the sound engineer control of the audience mix and separate stage monitor mixes.
Enquire About the CL5
We will confirm the setup and availability for your event.
What It Is
A mixing console with 72 mono and eight stereo input channels. Dante networking connects compatible stage racks, while scene recall helps the engineer move between programme sections.
What It Does
- Input channels72 mono and eight stereo channels
- Dante audioConnects compatible networked stage racks
- Scene recallStores settings for programme changes
- Separate mixesRoutes audio to the audience and stage monitors
Best For
Specifications
- Dante capacity
- 64 inputs × 64 outputs at 48 kHz; Primary/Secondary etherCON
- Faders / layout
- 34 total: 16 + 8 + 8 + 2; Centralogic section
- Mix buses
- 24
- Matrix buses
- 8; input-to-matrix supported
- Main buses
- Stereo + mono
- Frequency response
- 20 Hz–20 kHz, +0.5/−1.5 dB
| Connections | |
|---|---|
| Local analog inputs / outputs | 8 XLR inputs / 8 XLR OMNI outputs |
| Talkback input | Separate balanced XLR talkback input |
| Dante capacity | 64 inputs × 64 outputs at 48 kHz; Primary/Secondary etherCON |
| Expansion slots | 3 Mini-YGDAI slots |
| Digital output | Stereo AES/EBU, 24-bit, XLR |
| Control / sync | Ethernet, MIDI In/Out, word-clock In/Out, GPI 5 in/5 out |
| Digital audio | |
| Internal sample rates | 44.1 or 48 kHz |
| Environment | |
| Operating temperature | 0–40 °C |
| Groups | |
| DCA / mute groups | 16 DCA groups / 8 mute groups |
| Interface | |
| Display | 10-inch touch panel |
| Faders / layout | 34 total: 16 + 8 + 8 + 2; Centralogic section |
| Meter bridge | Built-in output meter bridge on CL5 |
| Memory | |
| Scene memories | 300 |
| Mixing | |
| Input processing | 72 mono + 8 stereo |
| Mix buses | 24 |
| Matrix buses | 8; input-to-matrix supported |
| Main buses | Stereo + mono |
| Performance | |
| Signal delay | <2.5 msOMNI IN to OMNI OUT at 48 kHz |
| Frequency response | 20 Hz–20 kHz, +0.5/−1.5 dBRelative to +4 dBu at 1 kHz, OMNI IN to OMNI OUT |
| Dynamic range | 108 dB typical input-to-output; 112 dB typical D/AMinimum input gain |
| Local analog maximum levels | +30 dBu input at minimum gain; +24 dBu default OMNI output |
| Physical | |
| Dimensions W × H × D | 1053 × 299 × 667 mm |
| Net weight | 36 kg |
| Power | |
| Consumption | 170 W internal PSU; 200 W with internal PSU and external PW800W |
| External redundant supply option | PW800W with appropriate connection cable; optional hardware |
| Processing | |
| Channel processing | 4-band full parametric EQ; two input dynamics processors |
| Input high-pass filter | 20–600 Hz; −6 or −12 dB/octave selectable on supporting firmware |
| Input and output-port delay | 0–1000 ms |
| Rack capacity | 8 premium racks, 8 effects racks, 16 GEQ racks |
| Automixer | Dugan Automixer supported from CL V3.0 |
