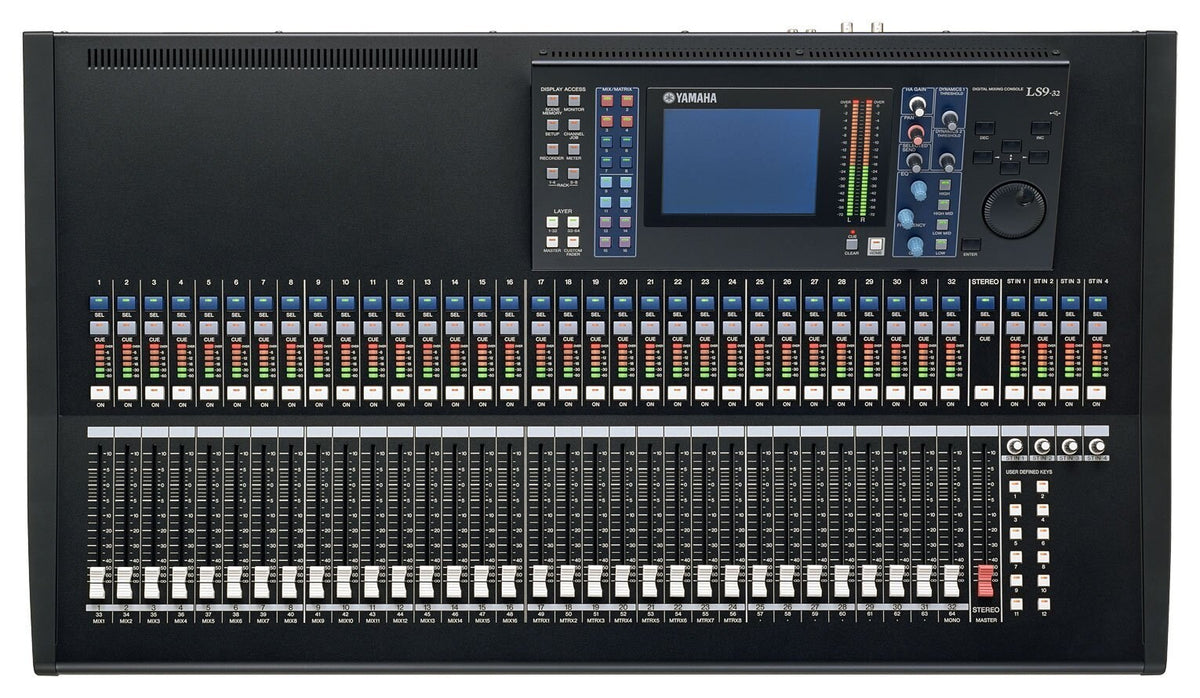

Yamaha

LS9-32

Name: LS9-32
Brand: Yamaha

Digital mixing console

A digital console with 32 microphone inputs and 16 outputs on the desk itself, across 16 mixes and 8 matrices. Used for conferences where speech, playback and video sound all have to arrive as one balanced mix in the room.

Enquire About the LS9-32

We will confirm the setup and availability for your event.

What It Is

884 × 220 × 500 mm drawing 170 W, with no stage box needed for a 32-input room. 300 scene memories cover a multi-day programme, so each session recalls rather than rebalances.

What It Does

Mix buses16
Matrix buses8
Local analog inputs32 XLR microphone/line
Scene memories300

Best For

Conference with several microphones
Gala with live entertainment
Stage monitor mixing
Exhibition programme stage
Rehearsal and reference recording

Specifications

Mono input capacity: 32 local mic/line inputs; expandable to 64 mono processing channels
Stereo input channels: 4 stereo channels
Main buses: Stereo and mono; LCR mode available
Frequency response: 20 Hz–20 kHz, +0.5/−1.5 dB
Local analog outputs: 16 XLR OMNI outputs
Analog input impedance: 3 kΩ

Connections
Local analog inputs	32 XLR microphone/line
Local analog outputs	16 XLR OMNI outputs
Analog input impedance	3 kΩ
Maximum local input	+30 dBu at minimum gain
Phantom supply	+48 V
OMNI output impedance	75 Ω
OMNI maximum output	+24 dBu default; +18 dBu internal setting alternative
Digital stereo input/output	RCA coaxial IEC60958, 24-bit, 75 Ω
Control and sync	100Base-T RJ45; MIDI In/Out; BNC word-clock In/Out
Digital audio
Internal sampling rates	44.1 or 48 kHz
Memory
Scene memories	300
Mixing
Mono input capacity	32 local mic/line inputs; expandable to 64 mono processing channels
Stereo input channels	4 stereo channels
Mix buses	16
Matrix buses	8
Main buses	Stereo and mono; LCR mode available
Performance
Signal delay	<2.5 msCH INPUT to OMNI OUT at 48 kHz
Frequency response	20 Hz–20 kHz, +0.5/−1.5 dBCH INPUT to OMNI OUT, +4 dBu into 600 Ω
THD	<0.05%20 Hz–20 kHz, +4 dBu into 600 Ω, minimum gain, 80 kHz filter
Dynamic range	108 dB typical A/D+D/A; 110 dB typical D/A
Equivalent input noise	−128 dBu20 Hz–20 kHz, 150 Ω source, maximum gain
Physical
Dimensions W × H × D	884 × 220 × 500 mm
Weight	19.4 kg
Power
Consumption	170 W
AC supply	100–240 V AC, 50/60 Hz on official web specificationArchived datasheet lists 110–240 V; confirm unit label
Processing
Internal arithmetic	32-bit processing; 58-bit accumulator
Recording
USB storage interface	USB 1.1 Type-A; built-in stereo recorder/player
