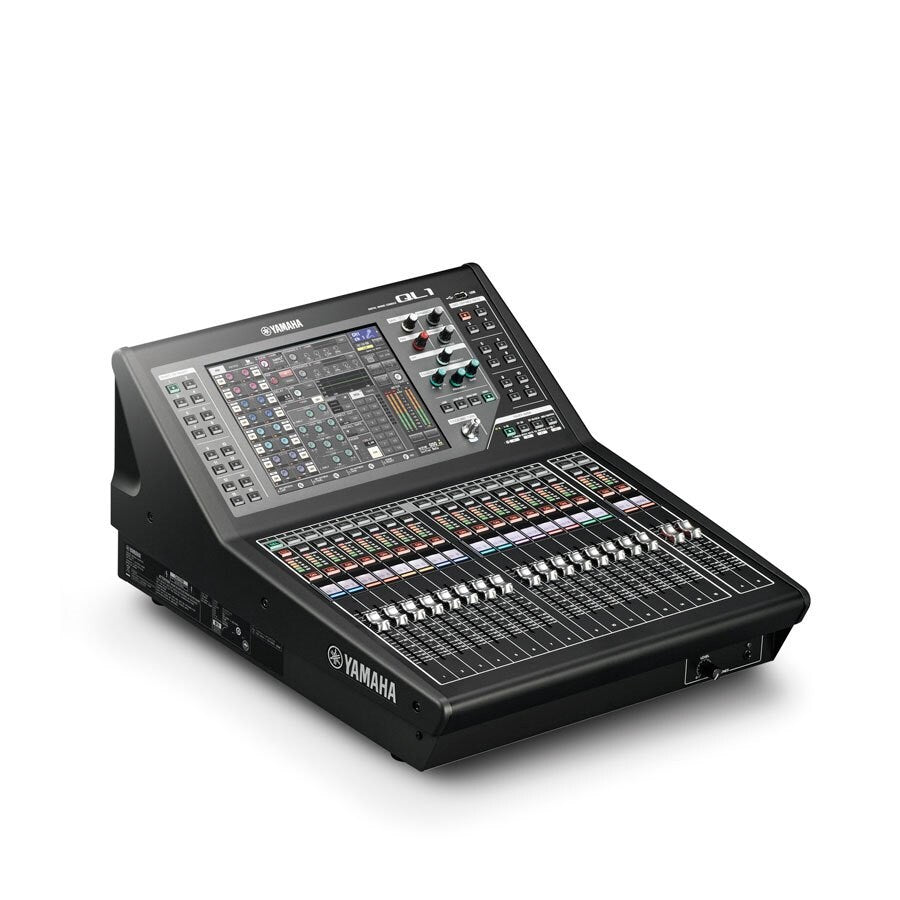

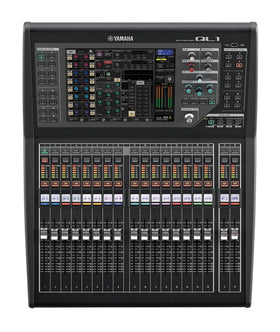

Yamaha

QL1

Name: QL1
Brand: Yamaha

Digital mixing console

A digital console carrying 32 mono channels with 32 network inputs and outputs, plus 16 microphone inputs locally. Used where the desk belongs at the back of the room and the inputs stay on stage, joined by a single network cable.

Enquire About the QL1

We will confirm the setup and availability for your event.

What It Is

468 × 272 × 562 mm drawing 135 W, small enough for a control position inside the seating. Cable across the floor drops to one line instead of a multicore run.

What It Does

Input processing32 mono + 8 stereo
Mix buses16
Matrix buses8; input-to-matrix supported
Local analog inputs / outputs16 XLR inputs / 8 XLR OMNI outputs
Scene memories300

Best For

Panel discussion
Hybrid corporate conference
Gala with changing programme
Networked breakout production
Conference recording

Specifications

Dante capacity: 32 inputs × 32 outputs; Primary/Secondary ports
Display / faders: 10-inch touch panel; 16 channel + 2 master faders
Fader mechanism: 100 mm motorised; 1024-step resolution
Main buses: Stereo + mono
Frequency response: 20 Hz–20 kHz, +0.5/−1.5 dB
Channel EQ and dynamics: 4-band full parametric EQ; two input dynamics processors

Connections
Local analog inputs / outputs	16 XLR inputs / 8 XLR OMNI outputs
Dante capacity	32 inputs × 32 outputs; Primary/Secondary ports
Expansion slots	2 Mini-YGDAI slots
Digital output	1 stereo AES/EBU XLR
Control / sync	Ethernet, MIDI In/Out, word-clock In/Out, GPI 5 in/5 out
Digital audio
Internal sample rates	44.1 or 48 kHz
Environment
Operating temperature	0–40 °C
Groups
DCA / mute groups	16 DCA groups / 8 mute groups
Interface
Display / faders	10-inch touch panel; 16 channel + 2 master faders
Fader mechanism	100 mm motorised; 1024-step resolution
Memory
Scene memories	300
Mixing
Input processing	32 mono + 8 stereo
Mix buses	16
Matrix buses	8; input-to-matrix supported
Main buses	Stereo + mono
Performance
Signal delay	<2.5 msINPUT to OMNI OUT at 48 kHz
Frequency response	20 Hz–20 kHz, +0.5/−1.5 dBRelative to +4 dBu output at 1 kHz
Dynamic range	108 dB typical input-to-output; 112 dB typical D/AMinimum input gain
Maximum local input / output	+30 dBu input at −6 dB gain; +24 dBu default OMNI maximum
Physical
Dimensions W × H × D	468 × 272 × 562 mm
Net weight	14.7 kg
Power
AC supply / consumption	100–240 V, 50/60 Hz / 135 W
Processing
Channel EQ and dynamics	4-band full parametric EQ; two input dynamics processors
Input high-pass filter	20–600 Hz; selectable −6 or −12 dB/octave
Input and output-port delay	0–1000 ms
Effect / premium racks	8 effect racks / 8 premium racks
GEQ racks	8; supports GEQ, Flex15GEQ and Dugan Automixer
Recording
Recording routes	Stereo USB memory recording; multitrack via Dante and suitable computer/software
