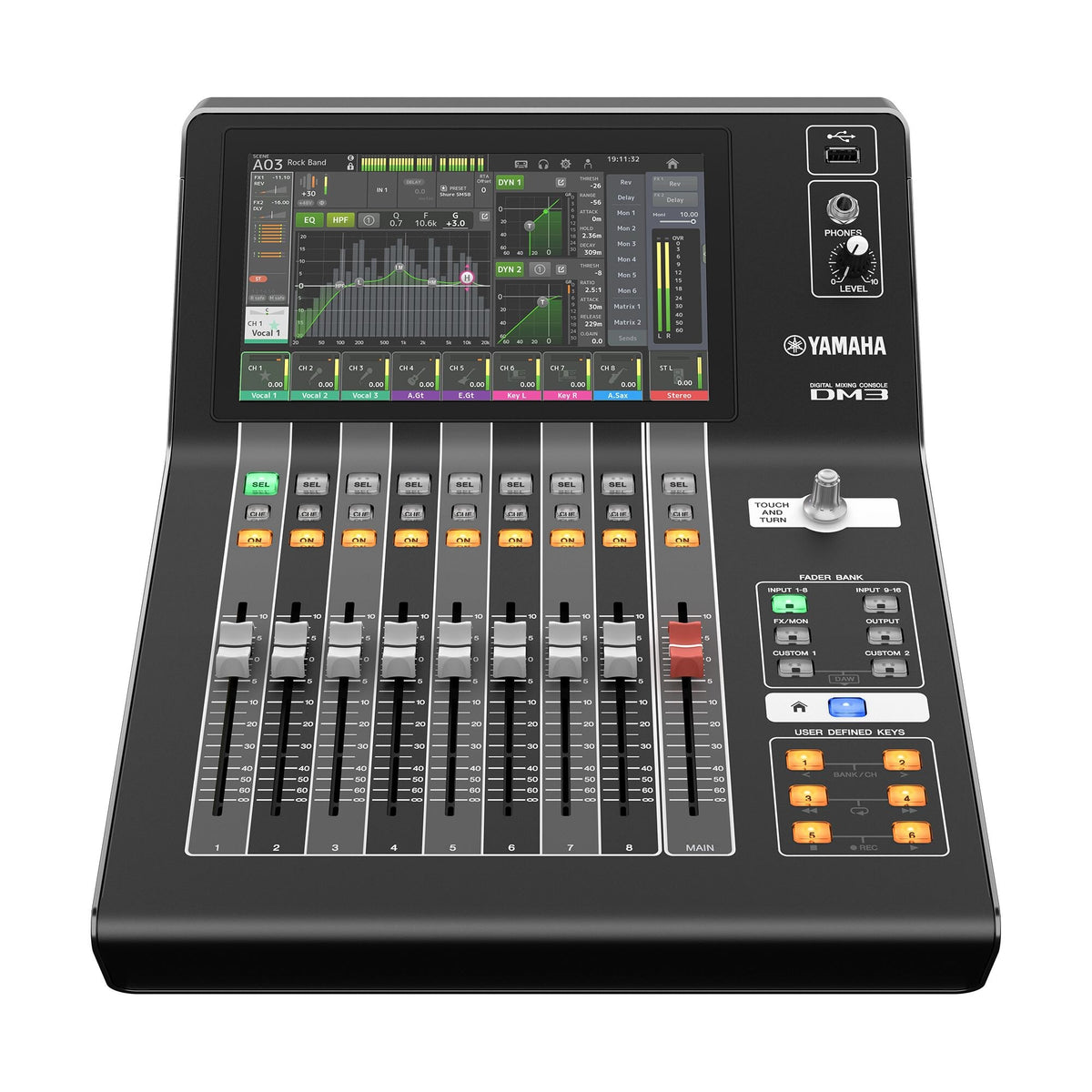

DM3
Compact digital mixer
A compact digital mixer handling 16 mono channels across six mixes, with 16 microphone inputs on the surface. Used for breakout rooms, workshops and side stages where a full console will not fit but the sound still has to be properly run.
Enquire About the DM3
We will confirm the setup and availability for your event.
What It Is
320 × 140 × 455 mm and 6.5 kg, so it sits on a table and travels in a bag. Scenes save between sessions, so a room resets in one recall rather than a rebuild.
What It Does
- Input processing16 mono + 1 stereo + 2 stereo FX returns
- Mix buses6
- Matrix buses2; input-to-matrix routing supported
- Local analog inputs16 microphone/line: 12 XLR + 4 XLR/TRS combo
Best For
Specifications
- Other buses
- 1 stereo, 2 FX, 1 cue
- Frequency response
- 20 Hz–20 kHz, +0.5/−1.0 dB
- USB storage recorder/player
- 2-track recording and 2-track playback
- Local analog outputs
- 8 XLR
- Dante-equipped version
- 2 etherCON ports, Primary/Secondary; absent on DM3 Standard
- Computer connection
- 1 USB Type-B, USB 2.0
| Connections | |
|---|---|
| Local analog inputs | 16 microphone/line: 12 XLR + 4 XLR/TRS combo |
| Local analog outputs | 8 XLR |
| Dante-equipped version | 2 etherCON ports, Primary/Secondary; absent on DM3 Standard |
| Control network | 1 RJ45 |
| Computer connection | 1 USB Type-B, USB 2.0 |
| USB storage connection | 1 USB Type-A |
| Headphone output | 1 TRS phone socket |
| Digital audio | |
| Sampling frequencies | 48 kHz or 96 kHz |
| Environment | |
| Operating temperature | 0–40 °C |
| Interface | |
| Control surface | 9-inch multitouch display; 8 channel faders + 1 main fader; Touch and Turn encoder |
| Mixing | |
| Input processing | 16 mono + 1 stereo + 2 stereo FX returns |
| Mix buses | 6 |
| Matrix buses | 2; input-to-matrix routing supported |
| Other buses | 1 stereo, 2 FX, 1 cue |
| Performance | |
| Signal delay | <1.3 msCH INPUT to OMNI OUT at 96 kHz |
| Frequency response | 20 Hz–20 kHz, +0.5/−1.0 dBINPUT to OMNI OUT; relative to nominal output at 1 kHz |
| Total harmonic distortion | <0.01%20 Hz–20 kHz, +4 dBu into 10 kΩ, minimum input gain; 80 kHz filter |
| Dynamic range | 106 dB typical input-to-output; 110 dB typical D/AMinimum input gain |
| Equivalent input noise | −126 dBu typicalMaximum input gain |
| Physical | |
| Dimensions W × H × D | 320 × 140 × 455 mm |
| Net weight | 6.5 kg |
| Power | |
| Supply | 24 V DC, 2.5 A; PA-L500 adapter accepts 100–240 V AC, 50/60 Hz |
| Consumption | 43 W |
| Recording | |
| Computer audio interface | 18 recording channels × 18 playback channels |
| USB storage recorder/player | 2-track recording and 2-track playback |
