Yamaha
Yamaha

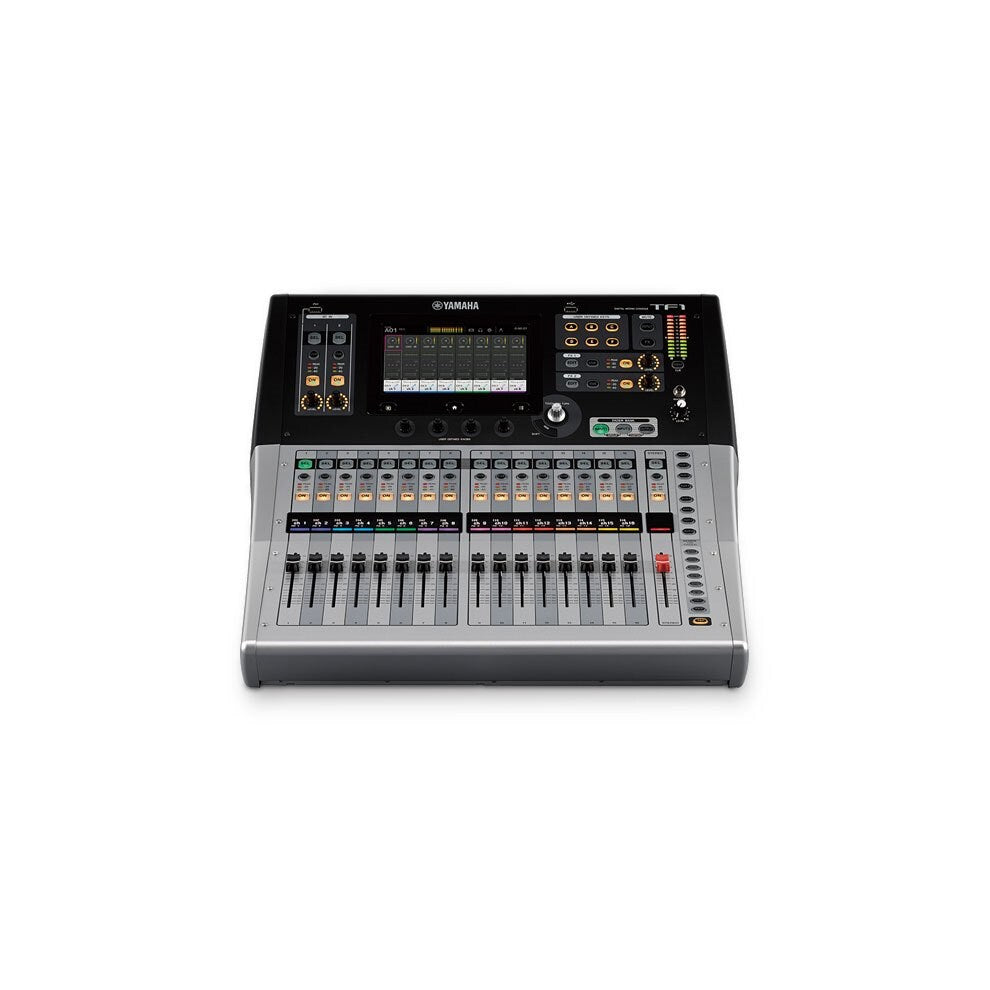

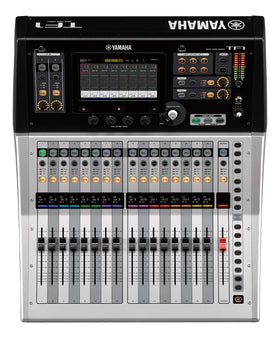

TF1
Digital mixing console
A touchscreen console handling 40 channels onto a stereo mix, with 16 motorised faders across the surface. Used for single-room programmes with a clear running order, where setup speed and quick live changes matter more than channel count.
Enquire About the TF1
We will confirm the setup and availability for your event.
What It Is
Eight effects racks and ten graphic EQ racks are onboard, drawing 100 W in total. Phantom power switches individually per input, so condenser and dynamic microphones share the desk safely.
What It Does
- Input processing40 channels: 32 mono + 2 stereo + 2 return channels
- Local mic/line inputs16 balanced XLR/TRS combo
- Aux buses20: 8 mono + 6 stereo
- Main buses1 stereo + 1 sub
Best For
Specifications
- Faders
- 16 channel + 1 master; 100 mm motorised
- Frequency response
- 20 Hz–20 kHz, +0.5/−1.5 dB
- Stereo line inputs
- 2 stereo RCA input pairs
- Local outputs
- 16 XLR
- Phantom supply
- +48 V individually switchable for XLR inputs
- Microphone input impedance
- 7.5 kΩ
| Connections | |
|---|---|
| Local mic/line inputs | 16 balanced XLR/TRS combo |
| Stereo line inputs | 2 stereo RCA input pairs |
| Local outputs | 16 XLR |
| Expansion slot | 1; supports optional NY64-D Dante interface |
| Phantom supply | +48 V individually switchable for XLR inputs |
| Microphone input impedance | 7.5 kΩ |
| Maximum mic/line input | +30 dBu at −6 dB gain |
| Stereo RCA nominal / maximum | −10 dBV nominal / +10 dBV maximum |
| Digital audio | |
| Internal sample rate | 48 kHz |
| Environment | |
| Operating temperature | 0–40 °C |
| Groups | |
| DCA groups | 8 |
| Interface | |
| Faders | 16 channel + 1 master; 100 mm motorised |
| Mixing | |
| Input processing | 40 channels: 32 mono + 2 stereo + 2 return channels |
| Aux buses | 20: 8 mono + 6 stereo |
| Main buses | 1 stereo + 1 sub |
| Performance | |
| Signal delay | <2.6 msINPUT to OMNI OUT at 48 kHz |
| Frequency response | 20 Hz–20 kHz, +0.5/−1.5 dBRelative to +4 dBu output at 1 kHz |
| THD | <0.05%20 Hz–20 kHz, +4 dBu into 600 Ω, minimum gain, 80 kHz filter |
| Dynamic range | 107 dB typical input-to-output; 110 dB typical D/AMinimum input gain |
| Physical | |
| Dimensions W × H × D | 510 × 225 × 599 mm |
| Net weight | 13.5 kg |
| Power | |
| AC supply | 100–240 V, 50/60 Hz |
| Consumption | 100 W |
| Processing | |
| Onboard processing racks | 8 effects + 10 GEQ |
| Recording | |
| USB computer interface | 34 recording channels × 34 playback channels |
| USB storage | 2-track record/playbackOfficial specifications exclude USB thumb drives for recording; use a tested drive |
Documents
Use the manufacturer documents for detailed setup and operating information.
